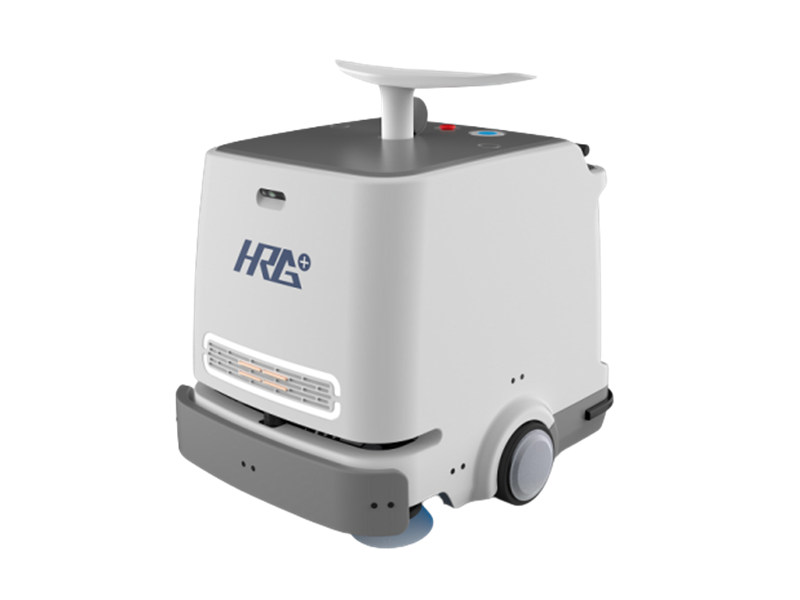

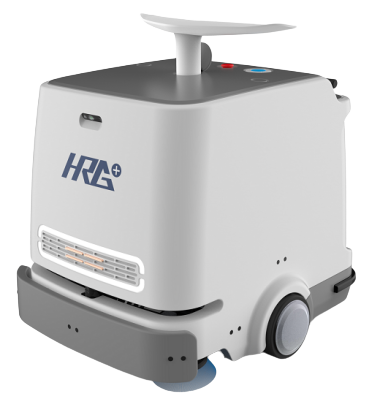

Sweeping and Disinfecting Robot SW11

Equipped with 21.5-inch dual-screen multimedia, Sweeping and Advertising Robot SW12 integrates low-speed unmanned driving technology with cleaning concept and multimedia, providing professional cleaning for commercial users such as transportation hubs, shopping malls, supermarkets, exhibition centers and other premises. The robot attracts audience' attention by advertisement while cleaning.

Sweeping Robot SW10P is specially built for floor cleaning in commercial and industrial premises. The robot autonomously returns to the charging pile and minimizes human intervention, solving other robots’ problems that pre-sweeping is required, garbage cannot be completely taken away, and that dust is raised during cleaning. The intuitive user interface facilitates cleaning staff of all ages. Five safety protection measures include LIDAR, depth camera, ultrasonic, fall-arrest, and anti-collision.

Disinfecting Robot DF10 integrates low-speed unmanned driving technology and traditional concepts of disinfection, sterilization and cleaning, redefining the design of equipment in disinfection and cleaning industries, achieving intelligent and unmanned disinfection and cleaning, minimizing human contact and effectively reducing the risk of contact infection. Customizable path planning maximizes disinfection coverage.

Intermittent-motion Cartoner ZHJ120/150 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to medicine trays, blisters, cosmetics and other similar products. Easy to changeover and adjust different sizes of cartons. Fully automatic process of leaflet folding, carton forming, loading of product and leaflet, batch mark embossing, carton sealing and carton discharging. A chain of protective devices ensures safe and efficient operation. The machine can be integrated with Tray Making and Loading Machine, Blister Machine, Sachet Packing Machine, Weight Checker, Cellophane Overwrapping Machine (Stretch Bander), Cartoner to form a one-stop production line.

K600B+KZF550R3 Flim Bundling and Case Packing Production Line Parameters Model K600B+KZF550R1 Bundler module Bundle size(LxWxH) Max:250x180x120mm Min:100x80x60mm Packaging materials PE Width:45-80mm Thickness:60-80mm Output 25-35 bundles/min Power supply 220V/50Hz Power 5KW Compressed air 0.6-0.8Mpa Dimensions 2900x1200x1830mm Weight 1200Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description Easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation andeasy format changeover. The machine is mainly usedin wrapping andbundling of carton-packed products in food and pharmaceutical industries.  All-in-one Case Erector Loader Sealer KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erector driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system.Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line. The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The Kuka robot arm will pick and place the product into the case after stacking andcase will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine. Features Bundler module 1.State-of-the-art design of structure andelectronic control system. Mainservo drive insulated from operation area. GMP compliant. 2. Advancedheat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double filmreelingstructure savepacking materials and reduce cost. 3.Multi-lane pre-stacking mechanismsubstantially increases the speed of cartongrouping and collating wherebythe feeding speedcan reach 200-400 cartons/minutes in theproceeding stage. Bundling speed is not less than 40 bundles/minute. 4.Bundling strength is adjustable. Changing products andadjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes. All-in-one case packer module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Automatic Vertical Sealer and Shrink Wrap Machine S801+S5030L consists of an L-bar sealer and a heat shrink tunnel with high degree of automation and efficiency, widely used in mass production industries such as printing, color painting, greeting cards, photo albums, photo frames, electronics, daily chemicals, cosmetics.

DPT350W+ZHJ300 Vials and Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT350W+ZHJ300 Tray Module Punching speed 10--30 cuts/min Packaging material PVC/PVDC Max. width: 350mmthickness:0.15~0.50mm Scope of application vials, ampoule, others on request Main functions heating-forming-detecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm (customizable≤45mm) Max. forming area 345x150mm Stroke range standard≤150mm customizable≤250mm Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Motor frequency 0-50Hz Cartoner module Output 150-260 cartons/min Carton size 70-260mm×35-100mm×16-80mm Main motor power 2.2KW Total power 4KW Dimensions(LxWxH) 4810x1720x1750mm Weight 2500kg Power supply 380V/50Hz Air supply 0.6~0.8MPa Total power 6.5KW Air consumption 260L/min Noise ≤75dB Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

With modular design, DPTL-350/420/600 is applicable to tray making, loading, lamination and packing into cartons for ampoules, injectables (powder), oral liquids or trays of bigger sizes and special shapes for medical appliances, electronics (cells) and cosmetics, all modules integrated in one line with high speed.
