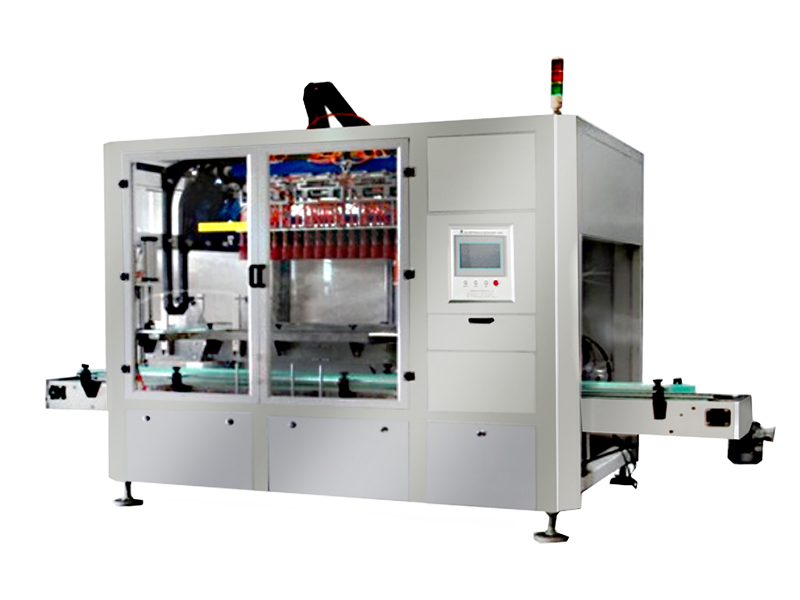

Case Loader ZXJ-500BM

Cross-type Case Loader ZXJ-600XY packs products vertically with vertical loading into cases, which is applicable to pharmaceutical, food and beverage, beer, liquor, oil and grease, daily chemical, bottled food and other industries.

Side-pushing type Case Loader ZXJ-600CT is equipped with imported electrical components and Siemens PLC + HMI, characteristic of intuitive operation and stable performance, mainly used in food, medicine, cosmetics and other industries.

Intermittent-motion Cartoner ZHJ120/150 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to medicine trays, blisters, cosmetics and other similar products. Easy to changeover and adjust different sizes of cartons. Fully automatic process of leaflet folding, carton forming, loading of product and leaflet, batch mark embossing, carton sealing and carton discharging. A chain of protective devices ensures safe and efficient operation. The machine can be integrated with Tray Making and Loading Machine, Blister Machine, Sachet Packing Machine, Weight Checker, Cellophane Overwrapping Machine (Stretch Bander), Cartoner to form a one-stop production line.

With modular design, DPTL-350/420/600 is applicable to tray making, loading, lamination and packing into cartons for ampoules, injectables (powder), oral liquids or trays of bigger sizes and special shapes for medical appliances, electronics (cells) and cosmetics, all modules integrated in one line with high speed.

Cross-type Case Loader ZXJ-600XY packs products vertically with vertical loading into cases, which is applicable to pharmaceutical, food and beverage, beer, liquor, oil and grease, daily chemical, bottled food and other industries.

DPT350W+ZHJ300 Vials and Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT350W+ZHJ300 Tray Module Punching speed 10--30 cuts/min Packaging material PVC/PVDC Max. width: 350mmthickness:0.15~0.50mm Scope of application vials, ampoule, others on request Main functions heating-forming-detecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm (customizable≤45mm) Max. forming area 345x150mm Stroke range standard≤150mm customizable≤250mm Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Motor frequency 0-50Hz Cartoner module Output 150-260 cartons/min Carton size 70-260mm×35-100mm×16-80mm Main motor power 2.2KW Total power 4KW Dimensions(LxWxH) 4810x1720x1750mm Weight 2500kg Power supply 380V/50Hz Air supply 0.6~0.8MPa Total power 6.5KW Air consumption 260L/min Noise ≤75dB Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

DPT350L+ZHJ200 Vials Blister Packing and Cartoning Production Line Parameters Model DPT350L+ZHJ200 Blister module Punching speed 10-35 cuts/min Max. forming area 345×180mm Stroke range standard ≤60-150mm  (customizable ≤180mm) Scope of application vials, oral liquid, others on request Packaging materials PVC/PVDC Max. width: 350mm       thickness: 0.15~0.50mm Max. forming depth 25mm ( customizable≤45mm) Heating power PVC pre-heating plate: 2x1.5KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×75mm Min:70×33×17mm Leaflet size (LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 80-150 cartons/min (depending on blister size) Main motor power 2.2KW Air pump Compressed air 0.5~0.8MPa Flow >0.2m2 Power supply 380V  50Hz Motor frequency 0-50Hz Dimensions(LxWxH) 10000X1170X2100 Weight 5600kg Total power 13.6kw Total air consumption 500L/min Certificates ISO9001:2015; ISO 45001:2018; CE Warranty 1 year Description DPT350L+ZHJ200 is a newly developed product designed for stand-up packaging of vials, oral liquid and daily chemical products. This machine has fast production speed, stable performance and high yield. It has advanced functions and intuitive operation. The whole production adopts PLC used for the packaging of vials.The packed products can not only provide feasts for eyes, increase added value, but also save packaging costs. Features Blister Module 1. Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2. Workstation adjustment by handwheel equipped with digital position display. 3. Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4. Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5. Packing material winding through air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6. Force feeding by pick-and-place robot arm ensures accurate placement of blisters without damage. Cartoner Module 1. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of blisters, drug bottles, ointments and other similar products. 2. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 3. ZHJ200 adopts PLC, photoelectric detection, and HMI. 4. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 5. With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

This completely automatic high speed labeling machine TBJ-200A uses touch screen and an advanced PLC control system. It is excellent for flat labeling, side labeling and corner labeling of cartons, cases and other cuboid products.
