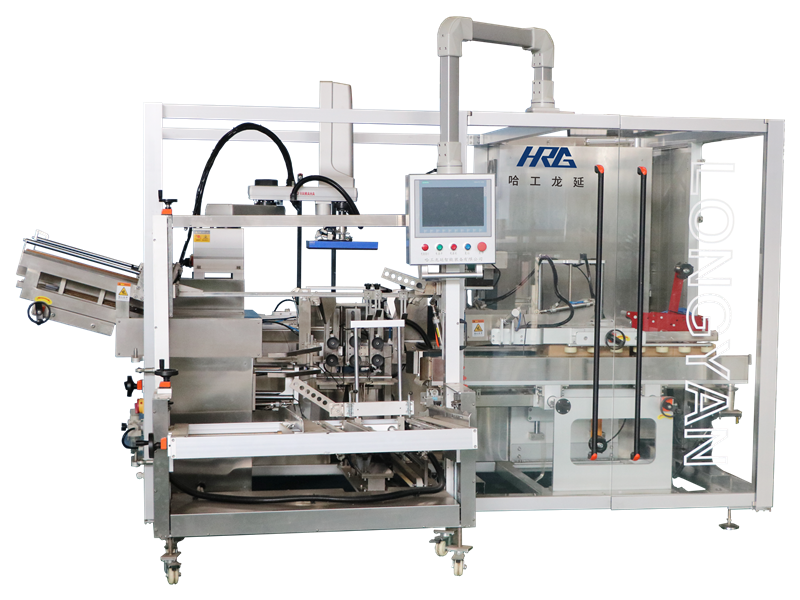

All-in-One Case Erector Loader Sealer KZF-550R3 (loading by Yamaha robot)

All-in-one Case Erector Loader Sealer KZF-550R2 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All-in-one Case Erecting/Loading/Sealing Machine KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erecting machine driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All in One Case Erector Loader Sealer KZF-550A incorporates advanced technologies both at home and abroad. Integrating automatic stacker, case erector, loader and sealer in one machine, comprising pick & place mechanisms for interlayer cardboards as well as QC passes, a PLC+14 HMI operating system facilitates case erecting and loading by servo module. Applicable to automatic packing of various sizes of products. The machine can be used solo or integrated with the proceeding packing machine to complete end-of-line packaging.

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.

Cross-type Case Loader ZXJ-600XY packs products vertically with vertical loading into cases, which is applicable to pharmaceutical, food and beverage, beer, liquor, oil and grease, daily chemical, bottled food and other industries.

Single and Multiple Bundles Cellophane Wrapping and Case Packing Production Line Parameters Model  TPZX-100L Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper is widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and  firm sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Features Cellophane wrapping module The machine has incorporated advanced technologies both home and abroad. With compact structure, T350A is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products.  All-in-one case packing module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Electric Power Steering (EPS) AGV consists of an electronic forklift (Linde L14), KOB control system, navigation control system, wireless equipment and dispatch and control system. Its navigation control system is composed of a navigation positioning controller, positioning radar, display screen, safety electrical equipment and peripheral electrical equipment. Wireless AP is responsible for dispatch control system’s WIFI communication. The dispatch control system is responsible for route planning, task scheduling and status display. The EPS AGV is suitable for a wide range of application scenarios and can replace manual forklift handling.

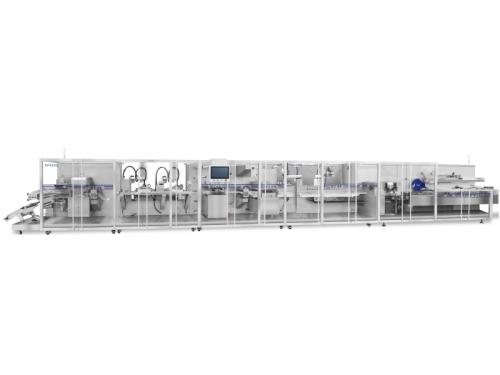

With modular design, DPTL-350/420/600 is applicable to tray making, loading, lamination and packing into cartons for ampoules, injectables (powder), oral liquids or trays of bigger sizes and special shapes for medical appliances, electronics (cells) and cosmetics, all modules integrated in one line with high speed.
