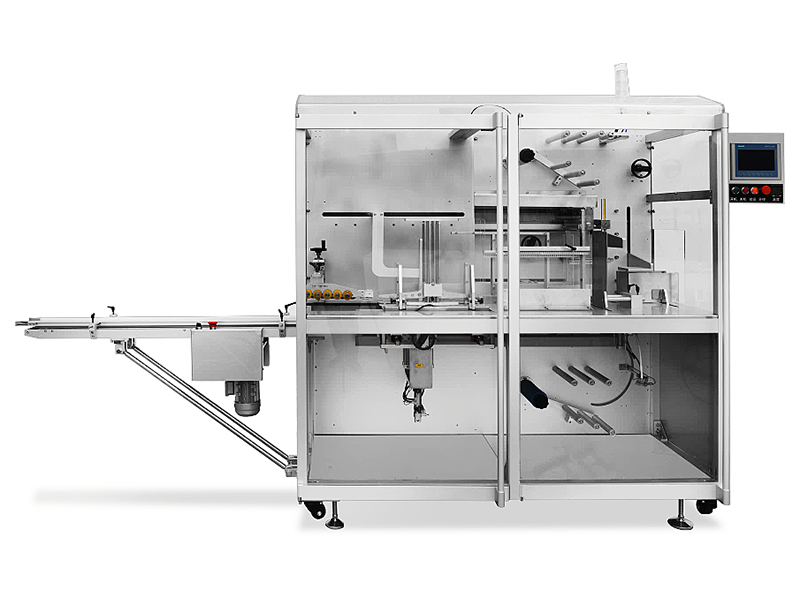

Bundling Machine K400A

Top-ranking by international standard. Easily visible open balcony design, in-built automatic stacker to achieve double layer stacking, PLC+HMI with imported electronic components, and servo drive allow high-speed bundling, stable operation, easy format changeover with intuitive operation. The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic industries.

Top-ranking by international standard. Easily visible open balcony design. In-built double-lane carton stacking mechanism. PLC + HMI with imported electronic components. Mainly pneumatic drive allows high-speed bundling and stable operation, easy format changeover with intuitive operation.The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic  industries.

The machine automatically counts, stacks and bundles multiple products with PE film tape, while saving energy and material to the greatest extent. Widely used in the automatic bundling and wrapping of multiple products in food and stationary industries, particularly injectables.

This easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation and easy format changeover. The machine is mainly used in wrapping and bundling of carton-packed products in food and Cosmetic industries.

Desktop catering robot Xiaolong's functions include magnetic cruise and navigation, fixed route meal delivery, smart contact inductive obstacle avoidance, and convenient rear screen operation interface. Being able to manage multiple tabletop food delivery rapidly and precisely makes the robot a right choice for tabletop catering business.

It is used for easily achieveing automated production line and completing tasks such as handling and stacking.

DPT420W+ZHJ300 Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT420W-ZHJ300 Tray module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     （customizable≤240mm） Scope of application vials, ampoule, others on request Packaging materials PVC/PVDC Max. width: 420mm  thickness:0.15~0.50mm Max. forming depth 25mm (customizable≤45mm) Heating power PVC pre-heating plates: 2x5、Lamination heating:4KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder), oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheel equipped with digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of blisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of, blisters, drug bottles, ointments and other similar products. 8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

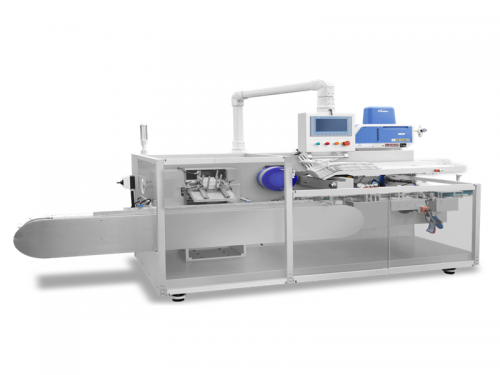

Intermittent-motion Cartoner ZHJ120/150 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to medicine trays, blisters, cosmetics and other similar products. Easy to changeover and adjust different sizes of cartons. Fully automatic process of leaflet folding, carton forming, loading of product and leaflet, batch mark embossing, carton sealing and carton discharging. A chain of protective devices ensures safe and efficient operation. The machine can be integrated with Tray Making and Loading Machine, Blister Machine, Sachet Packing Machine, Weight Checker, Cellophane Overwrapping Machine (Stretch Bander), Cartoner to form a one-stop production line.
