Catering Robot Xiaolong

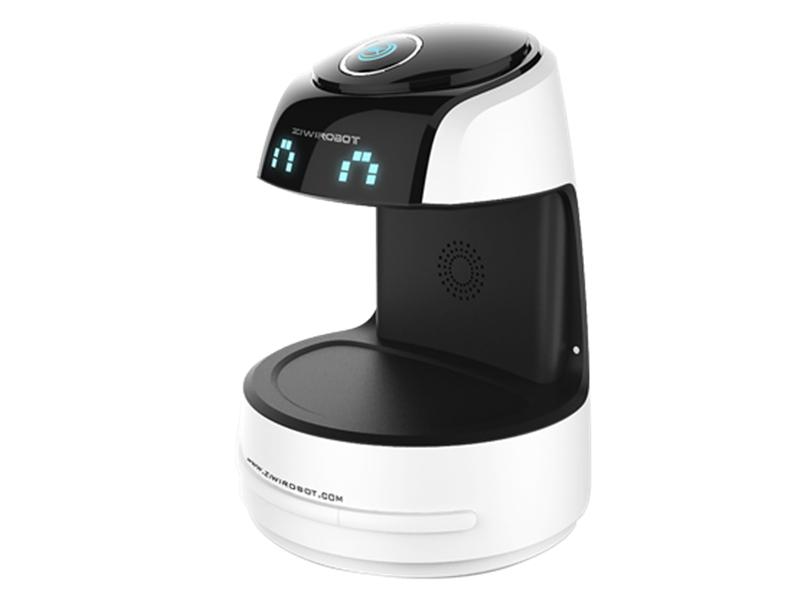

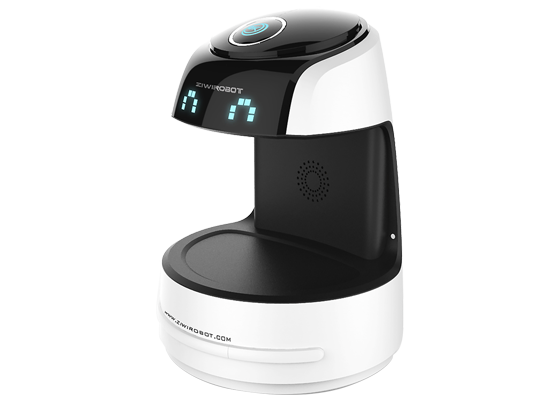

The catering robot, XiaoKa has functions of sensitive ultrasonic automatic obstacle avoidance, voice prompt, charging prompt, and music player. Its food container at the top is able to maintain coffee temperature and prevent liquid spilling.

The greeting robot’s features include human-machine interaction, facial recognition, autonomous navigation, intelligent voice interaction, customer guidance, automatic obstacle avoidance, collision avoidance, anti-drop on ladders, power detection and battery charging alert, video player, etc. The greeting robot can be equipped with customized APP to share the repeated reception work generally done by customer service staff and greeters.

With intermittent motion, facial-mask cartoner ZHJ-100B through multiple servo feeding is a piece of high-tech equipment integrating photoelectric, pneumatic and mechanic features, applicable to packing medicine trays, facial masks (linings), drug bottles, cosmetics and other similar products into cartons. Stable and reliable process allows easy replacing and adjusting of different sizes of cartons, automatic leaflet folding, carton erecting, loading of products and leaflets, batch mark embossing, as well as carton sealing and discharging. A chain of autonomous protective devices ensures safe and effective operation. The machine can be integrated with tray making and loading machine, facial mask packing machine, filling machine, weight checker, cellophane overwrapping machine (stretch bander), case packer and other end-of-line packaging equipment to constitute a complete packaging line.

Automatic Sealer and Shrink Wrap Machine S701+S4525L consists of an L-bar sealer and a heat shrink tunnel, extensively used in the mass production of packaging. A fully-automatic process of film feeding, punching, wrapping, sealing, cutting and shrinking, except manual adjustment of film guiding system and feeding platform for products of different widths and heights.

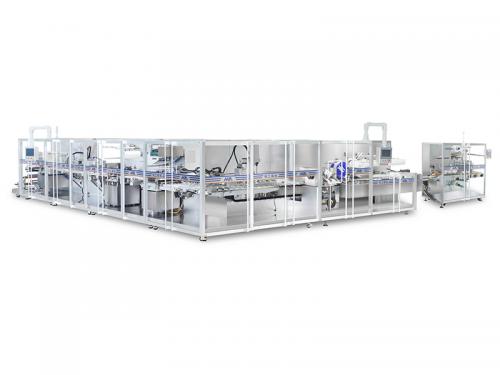

DPT350W+ZHJ200 Prefilled Syringes Blister Packing and Cartoning Production Line Parameters Model DPT350W+ZHJ200 Tray module Punching speed 10--30 cuts/min (depending on blister size) Packaging materials PVC/PVDC Max. width: 350mm  thickness:0.15~0.50mm Scope of application vials, ampoule, oral liquid, others on request Main functions heating-forming-detecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm (customizable≤45mm) Max. forming area 345x150mm Stroke range standard≤150mm (customizble≤250mm) Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×20×16mm Leaflet size(LxW) (100-180)x(100-280)mm Leaflet quality 60-65g/m2 Output 60-200 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ200 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ200 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

Single and Multiple Bundles Cellophane Wrapping and Case Packing Production Line Parameters Model  TPZX-100L Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper is widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and  firm sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Features Cellophane wrapping module The machine has incorporated advanced technologies both home and abroad. With compact structure, T350A is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products.  All-in-one case packing module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

All in One Case Erector Loader Sealer KZF-550A incorporates advanced technologies both at home and abroad. Integrating automatic stacker, case erector, loader and sealer in one machine, comprising pick & place mechanisms for interlayer cardboards as well as QC passes, a PLC+14 HMI operating system facilitates case erecting and loading by servo module. Applicable to automatic packing of various sizes of products. The machine can be used solo or integrated with the proceeding packing machine to complete end-of-line packaging.

Intermittent-motion Cartoner ZHJ120/150 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to medicine trays, blisters, cosmetics and other similar products. Easy to changeover and adjust different sizes of cartons. Fully automatic process of leaflet folding, carton forming, loading of product and leaflet, batch mark embossing, carton sealing and carton discharging. A chain of protective devices ensures safe and efficient operation. The machine can be integrated with Tray Making and Loading Machine, Blister Machine, Sachet Packing Machine, Weight Checker, Cellophane Overwrapping Machine (Stretch Bander), Cartoner to form a one-stop production line.
