Bottom-sealing Cellophane Overwrapper T350B

With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper T350A is widely used in 3D cellophane wrapping of single or multiple cuboid products in cosmetic, health care, food and other industries. Stable operation and firm sealing make the products nicely presented, tamper-evident,and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.

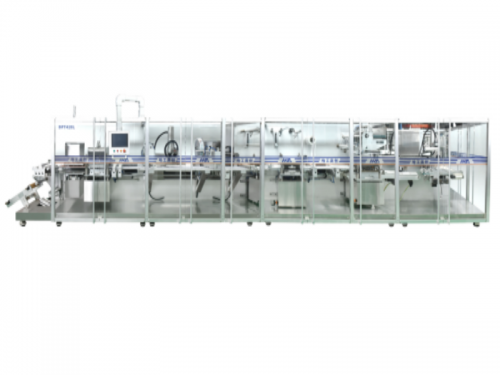

DPT350W+ZHJ120 Oral Liquid Blister Packing and Cartoning Machine Parameters Model DPT350W+ZHJ120 Blister module Punching speed 10--30 cuts/min Packaging materials PVC/PVDC Max. width: 350mmthickness:0.15~0.50mm Scope of application vials, ampoule, oral liquid, others on request Main functions heating-forming-dectecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm( customizable≤45mm) Max. forming area 345x150mm Stroke range Standard≤150mm (customizable≤250mm) Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Cartoner module Output 120 cartons/min Carton size Max:180×90×50mm Min:55×30×15mm Main motor power 1.5KW Total power 2.0KW Compressed air 0.6-0.9Mpa Weight 1800KG Dimensions(LxWxH) 3500×1450×1800mm Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ120 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7.Intermittent Cartoner ZHJ120 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ120 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

With easily visible open balcony design and modular concept, DPT-350/420 is applicable to tray making and loading for vials, ampoules, injectables (powder), oral liquids or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. No heat sealing. Shockproof vase-shaped pockets for injectables, ampoules and oral liquids.Servo drive and smart integration, high-speed performance.

Machine motion controlled by cam drive coupled with linkage mechanism ensures fast, precise and stable mechanical movements. One of the most stable high-speed case erectors in China. With compact design, intuitive operation, and easy adjustment. Pre-warning alert for replenishing cardboard blanks (KNF) without downtime. With alarm and machine stop in case of malfunction, cases won't be damaged.

Top-ranking by international standard. Easily visible open balcony design, in-built automatic stacker to achieve double layer stacking, PLC+HMI with imported electronic components, and servo drive allow high-speed bundling, stable operation, easy format changeover with intuitive operation. The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic industries.

Roller-type blister packing machine seals and packages blisters by aluminum/plastic (PTP/PVC) for medicines (tablets or capsules), food, health products, electronic components and other similar products. Positive pressure forming and platen heat sealing produces flat and neat blisters with full and smooth pockets. The speed of 180 punches per minute is roughly 4 to 5 times of other ordinary blister machines. The machine integrates the advantages of both flat-type and roller-type blister machines, configured with a special tablet feeder (or an automatic capsule U-turn reorientation device), characteristic of high punch frequency, low energy consumption, accurate and stable process, easy format changeover and high yield, especially adaptive to blisters, thus resulting in great improvement of production efficiency.

The catering robot, XiaoKa has functions of sensitive ultrasonic automatic obstacle avoidance, voice prompt, charging prompt, and music player. Its food container at the top is able to maintain coffee temperature and prevent liquid spilling.
