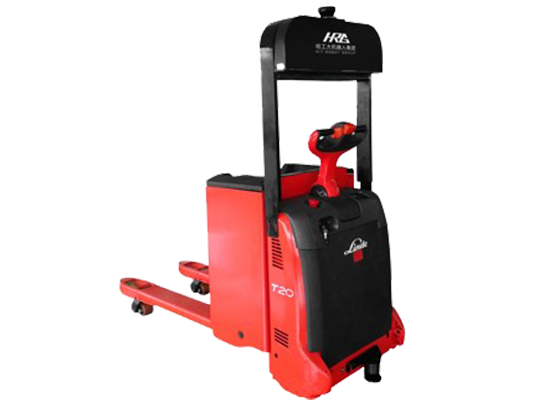

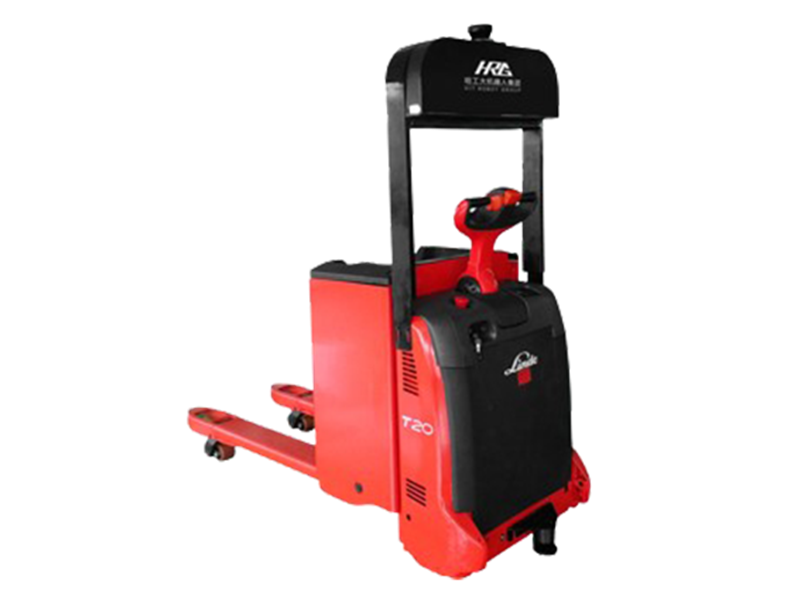

Laser SLAM Forklift

The function of Light Load Indoor Laser Navigation AGV includes autonomous navigation, real-time route planning, timely obstacle avoidance, and multi-machine scheduling. It can be used in medical services, logistics and warehousing industries and industrial sector. Functions that can be added as clients request include operating elevators and access control.

HRG provides customized services for clients in medical service, robotics, warehousing and logistics industry and light industrial sector. Options include robot navigation solutions, robot chassis design, and mobile chassis for outdoor robots.

The heavy-load AGV can move on the designated route and accurately pull over to the planned station to pick-up and deliver goods under computer monitoring. The product is powered by a battery pack that keeps track of real-time power loss and automatically docks for recharge. It can satisfy the need for all-year long continuous production.

The two-way carrying AGV series is equipped with magnetic navigation technology, with zero turning radius, large carrying and flexible motion capability as well as optimized laser safety protection and strong adaptability to various scenarios. It is applicable in a wide variety of production areas, such as automobile, electronics, home appliances, warehousing, medicine and food.

Electric Power Steering (EPS) AGV consists of an electronic forklift (Linde L14), KOB control system, navigation control system, wireless equipment and dispatch and control system. Its navigation control system is composed of a navigation positioning controller, positioning radar, display screen, safety electrical equipment and peripheral electrical equipment. Wireless AP is responsible for dispatch control system’s WIFI communication. The dispatch control system is responsible for route planning, task scheduling and status display. The EPS AGV is suitable for a wide range of application scenarios and can replace manual forklift handling.

The two-way knapsack AGV utilizes the latest laser SLAM navigation technology and magnetic stripe-assisted positioning technology, which has high positioning precision and is easy to build maps and change stations.

Tailored for bottle-packed and barrel-packed products, with novel design, compact structure, and imported key components. The machine automatically groups, collates, aligns and packs products, such as PET bottles, plastic bottles, glass bottles, tins and cans, according to the packing requirements, applicable to case packing in beer, beverage, food, chemical industries, particularly used in a production line. Rugged mobility, computer program control, intuitive operation, and stable process. Optional drive system at customer's discretion: electric drive, pneumatic drive or servo drive.

K600B+KZF550R3 Flim Bundling and Case Packing Production Line Parameters Model K600B+KZF550R1 Bundler module Bundle size(LxWxH) Max:250x180x120mm Min:100x80x60mm Packaging materials PE Width:45-80mm Thickness:60-80mm Output 25-35 bundles/min Power supply 220V/50Hz Power 5KW Compressed air 0.6-0.8Mpa Dimensions 2900x1200x1830mm Weight 1200Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description Easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation andeasy format changeover. The machine is mainly usedin wrapping andbundling of carton-packed products in food and pharmaceutical industries.  All-in-one Case Erector Loader Sealer KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erector driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system.Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line. The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The Kuka robot arm will pick and place the product into the case after stacking andcase will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine. Features Bundler module 1.State-of-the-art design of structure andelectronic control system. Mainservo drive insulated from operation area. GMP compliant. 2. Advancedheat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double filmreelingstructure savepacking materials and reduce cost. 3.Multi-lane pre-stacking mechanismsubstantially increases the speed of cartongrouping and collating wherebythe feeding speedcan reach 200-400 cartons/minutes in theproceeding stage. Bundling speed is not less than 40 bundles/minute. 4.Bundling strength is adjustable. Changing products andadjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes. All-in-one case packer module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.
