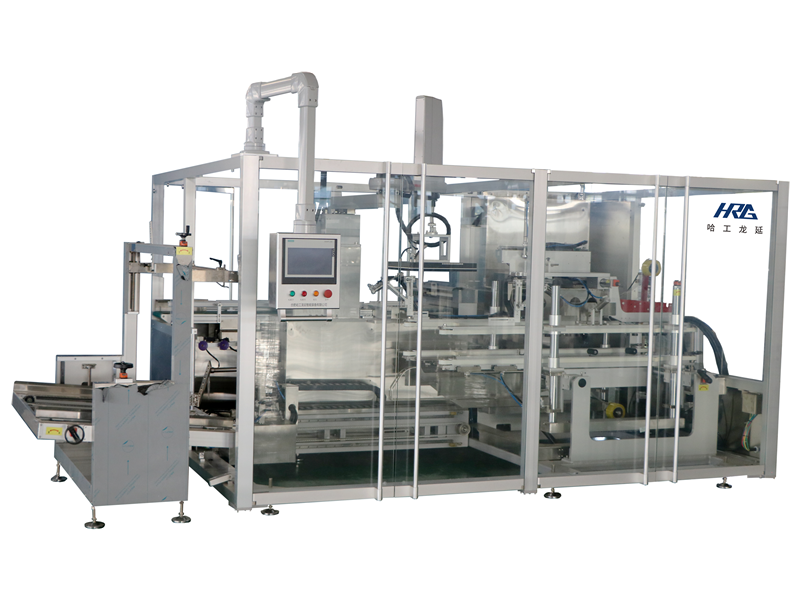

All-in-One Case Erector Loader Sealer KZF-550R2 (loading by Yamaha robot)

All-in-one Case Erector Loader Sealer KZF-550R3 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All-in-one Case Erecting/Loading/Sealing Machine KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erecting machine driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All in One Case Erector Loader Sealer KZF-550A incorporates advanced technologies both at home and abroad. Integrating automatic stacker, case erector, loader and sealer in one machine, comprising pick & place mechanisms for interlayer cardboards as well as QC passes, a PLC+14 HMI operating system facilitates case erecting and loading by servo module. Applicable to automatic packing of various sizes of products. The machine can be used solo or integrated with the proceeding packing machine to complete end-of-line packaging.

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.

Disinfecting Robot DF10 integrates low-speed unmanned driving technology and traditional concepts of disinfection, sterilization and cleaning, redefining the design of equipment in disinfection and cleaning industries, achieving intelligent and unmanned disinfection and cleaning, minimizing human contact and effectively reducing the risk of contact infection. Customizable path planning maximizes disinfection coverage.

TPZX-100L Lotion Cellophane Wrapping and Case Packing Production Line Parameters Model TPZX-100L Cartoner module Carton size(LxWxH) (80-200)x(30-120)x(25-100)mm Carton quality 300-350g/m2 white cardboard Leaflet quality 60-65g/m2 Output 40-80 cartons/min Total power 11KW Dimensions(LxWxH) 2920x1140x1880mm 5580x1440x1880mm(including lining mechanism) Weight 1500Kg Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, Cellophane Wrapper is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Integrated with all-in-one case packer, it can achieve intelligent, digital, and net-worked production. Features Lotion cartoner module 1.With PLC+HMI, it is equipped with high end servo motors, featuring easy format change,fast speed, stable performance, and accurate position. It is intuitive to operate even by an inexperienced operator. 2.The cartoning speed and accumulated output will be shown on touch screen.Functions can be chosen manually and automatically. 3. Equipped with an automatic detection system, ZHJ-100B automatically detects and locates the shutdown for failures such as lack of materials, materials not in place, and inability to open the carton. 4. Fault alarm and corresponding maintenance methods will be shown on touch screen. Cellophane wrapper module This machine has incorporated advanced technologies abroad. With compact structure, it is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products. All-in-one case packer module 1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2. The stacking system can be adjusted according to the size of the case and stacking pattern. 3.Not less than 10 placements per minute for quick case loading. 4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process. 5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Intermittent-motion Cartoner ZHJ120/150 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to medicine trays, blisters, cosmetics and other similar products. Easy to changeover and adjust different sizes of cartons. Fully automatic process of leaflet folding, carton forming, loading of product and leaflet, batch mark embossing, carton sealing and carton discharging. A chain of protective devices ensures safe and efficient operation. The machine can be integrated with Tray Making and Loading Machine, Blister Machine, Sachet Packing Machine, Weight Checker, Cellophane Overwrapping Machine (Stretch Bander), Cartoner to form a one-stop production line.

Automatic Vertical Sealer and Shrink Wrap Machine S801+S5030L consists of an L-bar sealer and a heat shrink tunnel with high degree of automation and efficiency, widely used in mass production industries such as printing, color painting, greeting cards, photo albums, photo frames, electronics, daily chemicals, cosmetics.
