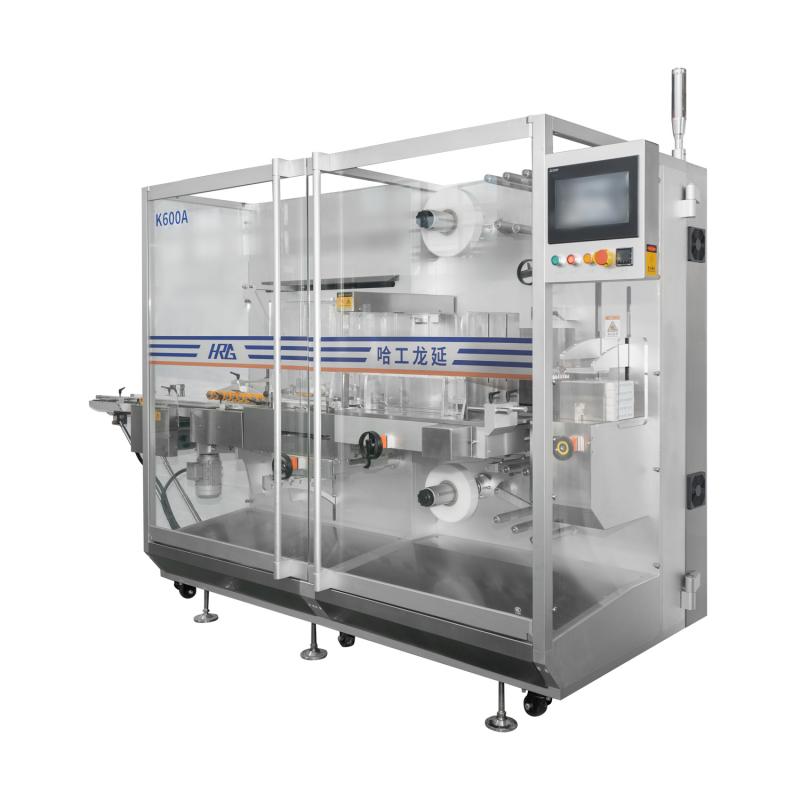

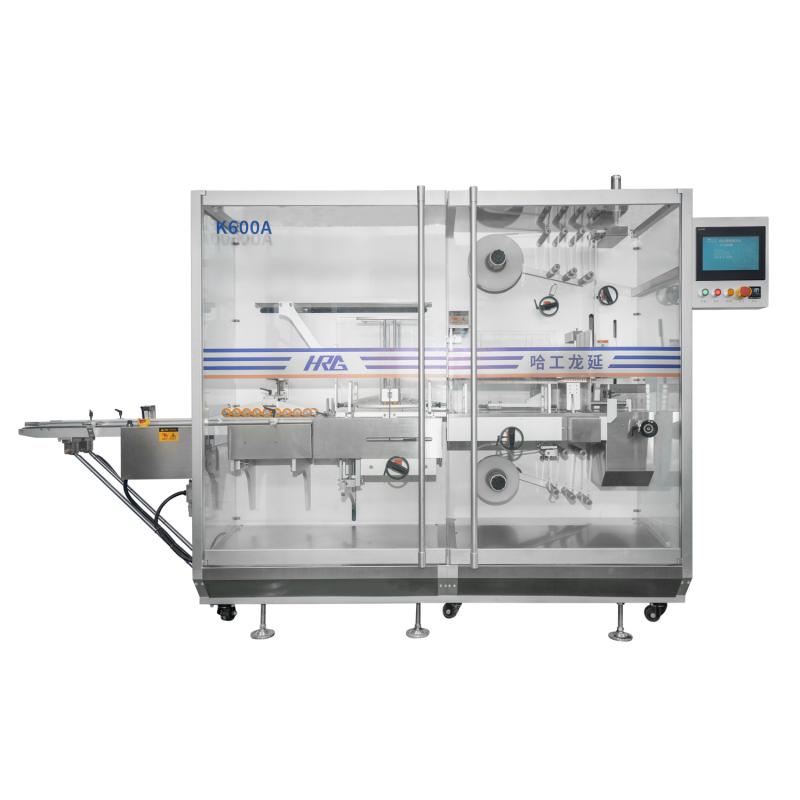

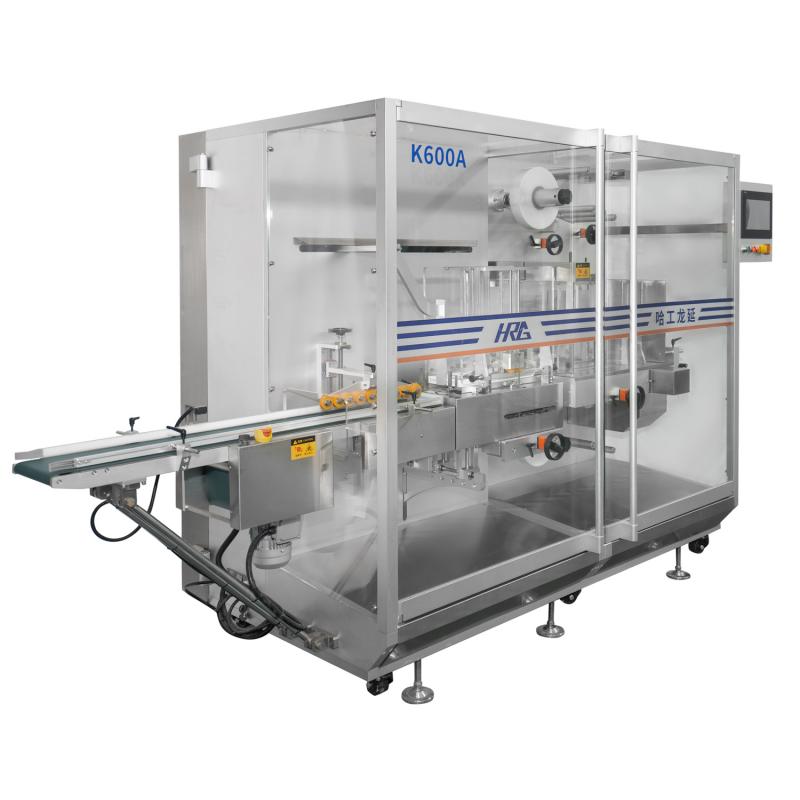

Automatic Stretch Banding Machine K600A

Top-ranking by international standard. Easily visible open balcony design, in-built automatic stacker to achieve double layer stacking, PLC+HMI with imported electronic components, and servo drive allow high-speed bundling, stable operation, easy format changeover with intuitive operation. The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic industries.

Easily visible open balcony design, multi-lane pre-stacking mechanism, PLC + HMI with imported electronic components, and mainly pneumatic drive allows high-speed bundling, stable operation, and formats changeover with intuitive operation.The machine is widely used in wrapping and bundling of carton-packed products in food and pharmaceutical industries.

Top-ranking by international standard. Easily visible open balcony design. In-built double-lane carton stacking mechanism. PLC + HMI with imported electronic components. Mainly pneumatic drive allows high-speed bundling and stable operation, easy format changeover with intuitive operation.The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic  industries.

The machine automatically counts, stacks and bundles multiple products with PE film tape, while saving energy and material to the greatest extent. Widely used in the automatic bundling and wrapping of multiple products in food and stationary industries, particularly injectables.

K600B+KZF550R3 Flim Bundling and Case Packing Production Line Parameters Model K600B+KZF550R1 Bundler module Bundle size(LxWxH) Max:250x180x120mm Min:100x80x60mm Packaging materials PE Width:45-80mm Thickness:60-80mm Output 25-35 bundles/min Power supply 220V/50Hz Power 5KW Compressed air 0.6-0.8Mpa Dimensions 2900x1200x1830mm Weight 1200Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description Easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation andeasy format changeover. The machine is mainly usedin wrapping andbundling of carton-packed products in food and pharmaceutical industries.  All-in-one Case Erector Loader Sealer KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erector driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system.Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line. The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The Kuka robot arm will pick and place the product into the case after stacking andcase will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine. Features Bundler module 1.State-of-the-art design of structure andelectronic control system. Mainservo drive insulated from operation area. GMP compliant. 2. Advancedheat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double filmreelingstructure savepacking materials and reduce cost. 3.Multi-lane pre-stacking mechanismsubstantially increases the speed of cartongrouping and collating wherebythe feeding speedcan reach 200-400 cartons/minutes in theproceeding stage. Bundling speed is not less than 40 bundles/minute. 4.Bundling strength is adjustable. Changing products andadjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes. All-in-one case packer module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

The Laser SLAM Forklift is the modified version of the original manual-only forklift. By adding various sensors, it can automatically walk, avoid obstacles, and lift goods. In addition, it is equipped with safety contact edges to ensure the overall safety and stability.

HRG provides customized services for clients in medical service, robotics, warehousing and logistics industry and light industrial sector. Options include robot navigation solutions, robot chassis design, and mobile chassis for outdoor robots.

Automatic Sealer and Shrink Wrap Machine S701+S4525L consists of an L-bar sealer and a heat shrink tunnel, extensively used in the mass production of packaging. A fully-automatic process of film feeding, punching, wrapping, sealing, cutting and shrinking, except manual adjustment of film guiding system and feeding platform for products of different widths and heights.
