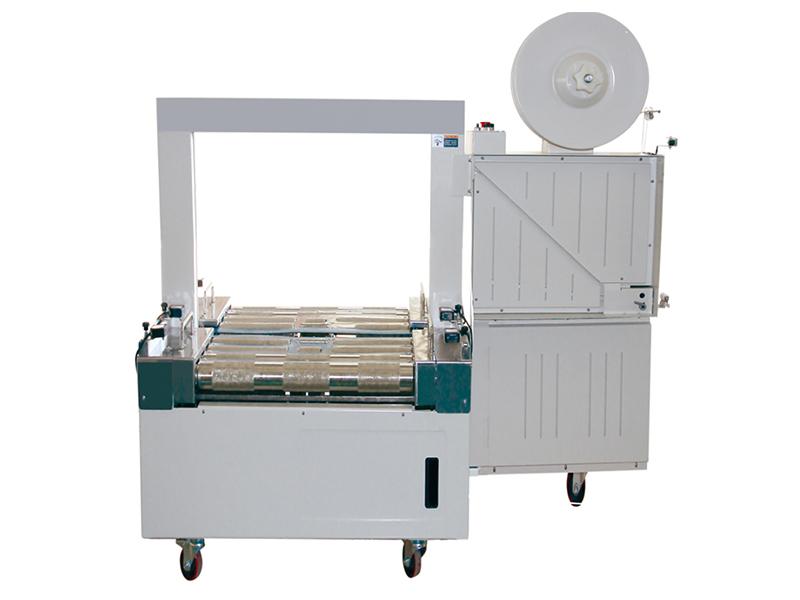

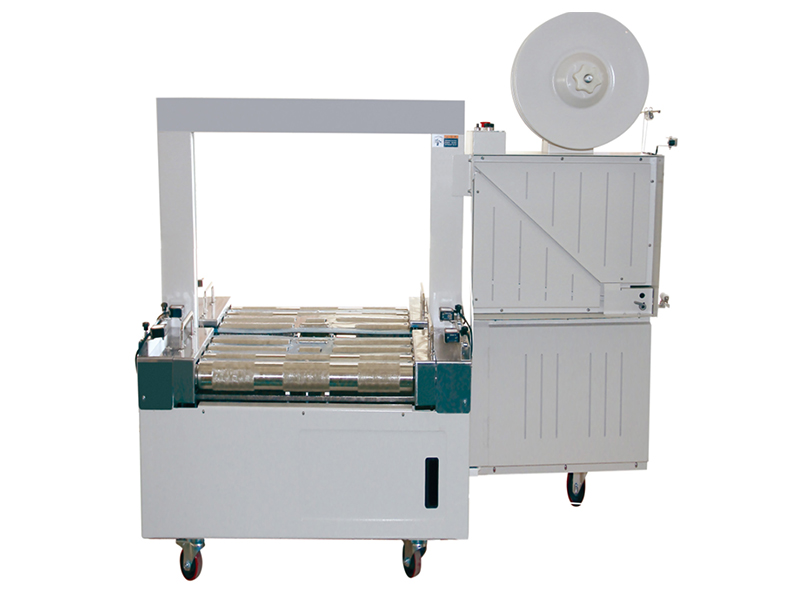

Case Strapper DBJ-02A

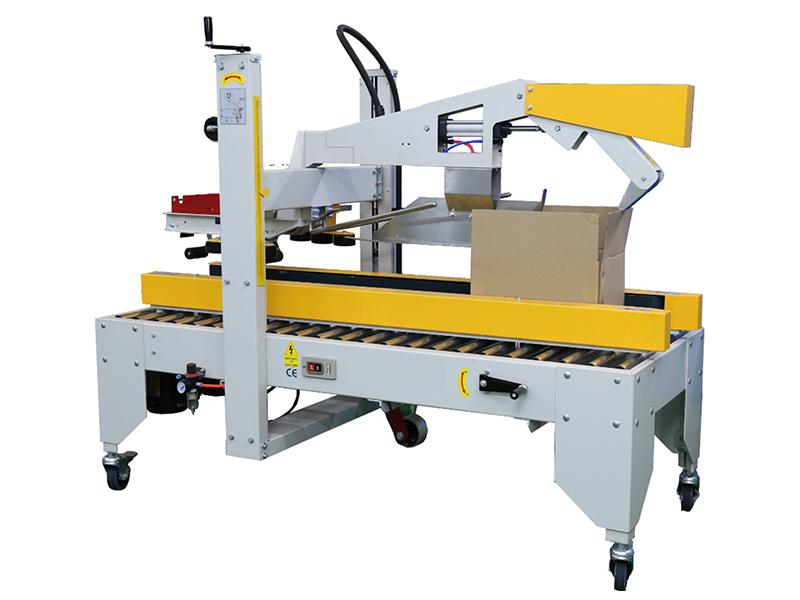

Case Sealing and Strapping machine FXD-01A can be used solo or integrated with other packaging machines to form a production line.

This easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation and easy format changeover. The machine is mainly used in wrapping and bundling of carton-packed products in food and Cosmetic industries.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.

With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper T350A is widely used in 3D cellophane wrapping of single or multiple cuboid products in cosmetic, health care, food and other industries. Stable operation and firm sealing make the products nicely presented, tamper-evident,and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value.

Top-ranking by international standard. Easily visible open balcony design. In-built double-lane carton stacking mechanism. PLC + HMI with imported electronic components. Mainly pneumatic drive allows high-speed bundling and stable operation, easy format changeover with intuitive operation.The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic  industries.

DPT420L+ZHJ300 Powder Injection Blister Packing and Cartoning Production Line Parameters Model DPT420l-ZHJ300 Blister module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     (customizable≤240mm) Scope of application vials, oral liquid, others on request Packaging machine PVC/PVDC Max.width:420mmthickness:0.15~0.50mm Max. forming depth 25mm(customizable≤45mm) Heating power PVC pre-heating plates 2x5KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner power Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min (depending on blister size) Motor power 2.2KW Air pump Compressed air（MPa) 0.5~0.8MPa Flow >0.2m2 Power supply 380V  50Hz Motor frequency 0-50Hz Dimensions(LxWxH) 13300X1170X2100 Weight 6800kg Total power 19.6kw Max. air consumption 500L/min Certificates ISO9001:2000;CE认证 Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420L+ZHJ300 is applicable to tray making and loading for vials, powder injection, and oral liquid. Shockproof vase-shaped pockets are suitable for injectables and oral liquids. Driven by servo, it has realized intelligent integration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement ofblisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

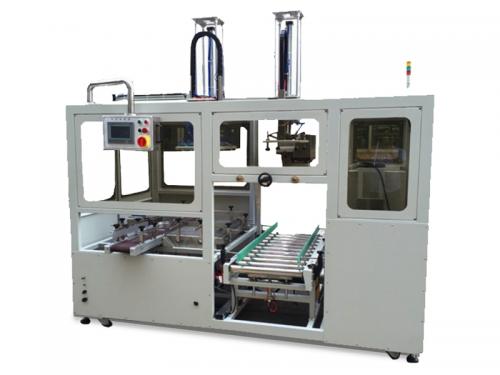

All in One Case Erector Loader Sealer KZF-550A incorporates advanced technologies both at home and abroad. Integrating automatic stacker, case erector, loader and sealer in one machine, comprising pick & place mechanisms for interlayer cardboards as well as QC passes, a PLC+14 HMI operating system facilitates case erecting and loading by servo module. Applicable to automatic packing of various sizes of products. The machine can be used solo or integrated with the proceeding packing machine to complete end-of-line packaging.

DPT350L+ZHJ200 Vials Blister Packing and Cartoning Production Line Parameters Model DPT350L+ZHJ200 Blister module Punching speed 10-35 cuts/min Max. forming area 345×180mm Stroke range standard ≤60-150mm  (customizable ≤180mm) Scope of application vials, oral liquid, others on request Packaging materials PVC/PVDC Max. width: 350mm       thickness: 0.15~0.50mm Max. forming depth 25mm ( customizable≤45mm) Heating power PVC pre-heating plate: 2x1.5KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×75mm Min:70×33×17mm Leaflet size (LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 80-150 cartons/min (depending on blister size) Main motor power 2.2KW Air pump Compressed air 0.5~0.8MPa Flow >0.2m2 Power supply 380V  50Hz Motor frequency 0-50Hz Dimensions(LxWxH) 10000X1170X2100 Weight 5600kg Total power 13.6kw Total air consumption 500L/min Certificates ISO9001:2015; ISO 45001:2018; CE Warranty 1 year Description DPT350L+ZHJ200 is a newly developed product designed for stand-up packaging of vials, oral liquid and daily chemical products. This machine has fast production speed, stable performance and high yield. It has advanced functions and intuitive operation. The whole production adopts PLC used for the packaging of vials.The packed products can not only provide feasts for eyes, increase added value, but also save packaging costs. Features Blister Module 1. Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2. Workstation adjustment by handwheel equipped with digital position display. 3. Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4. Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5. Packing material winding through air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6. Force feeding by pick-and-place robot arm ensures accurate placement of blisters without damage. Cartoner Module 1. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of blisters, drug bottles, ointments and other similar products. 2. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 3. ZHJ200 adopts PLC, photoelectric detection, and HMI. 4. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 5. With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.
