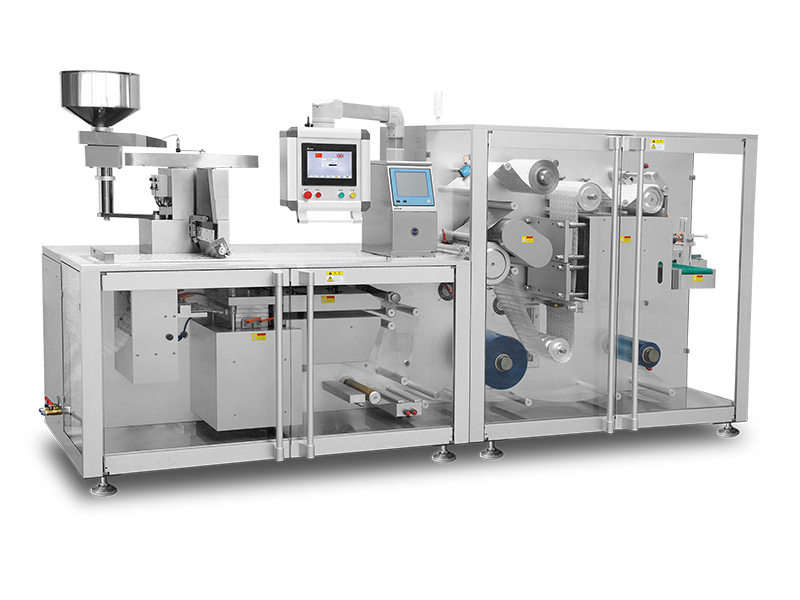

Roller-type Alu/PVC Blister Packing Machine DPH-260/360

Roller-type blister packing machine seals and packages blisters by aluminum/plastic (PTP/PVC) for medicines (tablets or capsules), food, health products, electronic components and other similar products. Positive pressure forming and platen heat sealing produces flat and neat blisters with full and smooth pockets. The speed of 180 punches per minute is roughly 4 to 5 times of other ordinary blister machines. The machine integrates the advantages of both flat-type and roller-type blister machines, configured with a special tablet feeder (or an automatic capsule U-turn reorientation device), characteristic of high punch frequency, low energy consumption, accurate and stable process, easy format changeover and high yield, especially adaptive to blisters, thus resulting in great improvement of production efficiency.


  • Item NO.:

    DPH-260/360
  • Order(MOQ):

    1PC
  • Payment:

    T/T; L/C; WESTERN UNION
  • Product Origin:

    CHINA
  • Color:

    WHITE+SILVER
  • Shipping Port:

    SHANGHAI; SHENZHEN; NINGBO; QINGDAO; GUANGZHOU
  • Lead Time:

    15-30DAYS
  • Weight:

    3000KG/3500 KG
Share To :
Product Detail

Intelligent Roller-type Alu/PVC Blister Packing Machine DPH-260/360



Features

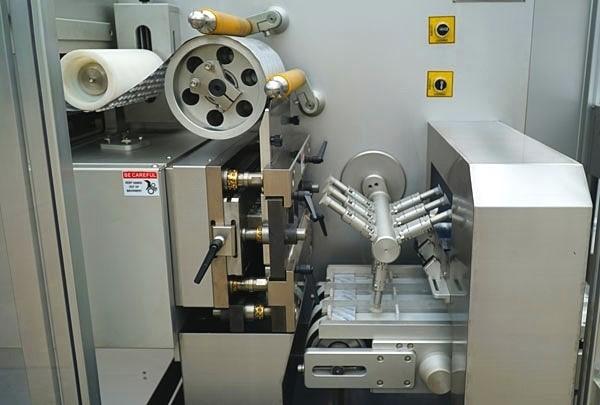

1. Equipped with a 360° rotary high-speed vacuum suction plate rejecting and conveying device, a shared decelerator for both rejection transmission and stroke transmission ensures synchronization of rejection speed and stroke speed.

2. Water cooling device for the roller die sustains the continuous use of the heat-sealing roller die in the production process, avoids the impact on the blister by the high temperature of the roller, and effectively eliminates aluminum foil wrinkling caused by the heat radiation.

3. The main drive connection by synchro-pulley and synchro-belt avoids vibration caused by the transmission under high-speed operation and reduces the noise of the equipment.

4. The process of forming, heat sealing, batch coding, punching and cutting each controlled by separate decelerators, driven by shafts and connecting pendulum rods, allows faster speed, higher level of durability and lower noise.



Parameters

Model

DPH-260

DPH-360

Punching speed (Alu/PVC)

40-180 cuts/minute

40-180 cuts/minute

Production capacity

14400-43200 blisters/hour

14400-54000 blisters/hour

Stroke range

40-240mm

Max. forming area

260x240mm

360x240mm

Power 3-phase 5-wire

380V 50Hz (220V 60Hz)

21Kw

24.4Kw

Dimensions (LxWxH)

4700x1200x1800mm

4800x1600x1800mm

Weight

3000Kg

3500Kg
