Sweeping and Advertising Robot SW12

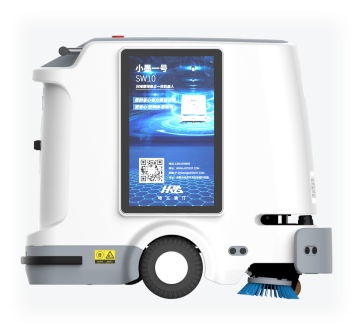

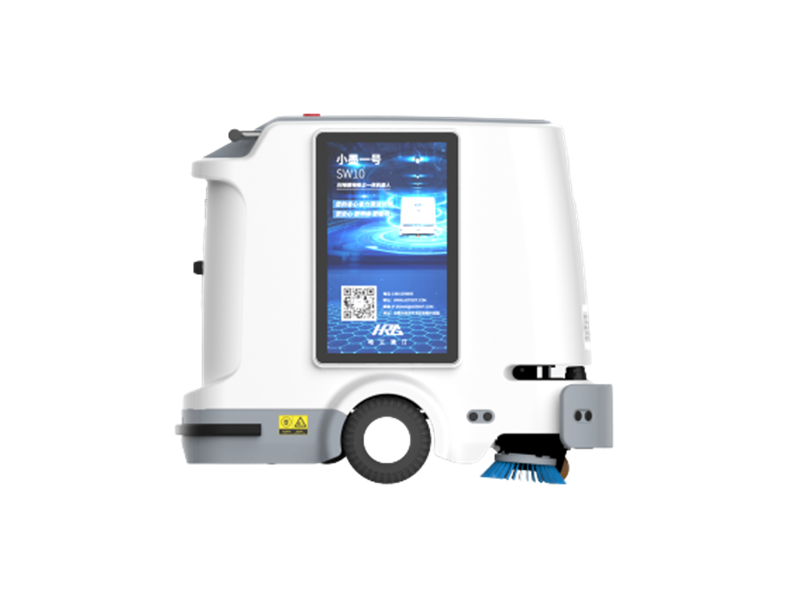

Sweeping Robot SW10P is specially built for floor cleaning in commercial and industrial premises. The robot autonomously returns to the charging pile and minimizes human intervention, solving other robots’ problems that pre-sweeping is required, garbage cannot be completely taken away, and that dust is raised during cleaning. The intuitive user interface facilitates cleaning staff of all ages. Five safety protection measures include LIDAR, depth camera, ultrasonic, fall-arrest, and anti-collision.

Sweeping and Disinfecting Robot SW11 is specially designed for floor cleaning and three-dimensional space disinfection in commercial and industrial premises. Intelligent, unmanned disinfection and cleaning minimizes human contact. Dual-channel high-flow atomization devices help achieve three-dimensional spray effect. The 3D disinfection range can reach 3000m³/h and above. The aerosol atomization can kill common pathogenic bacteria up to 6-log.

Disinfecting Robot DF10 integrates low-speed unmanned driving technology and traditional concepts of disinfection, sterilization and cleaning, redefining the design of equipment in disinfection and cleaning industries, achieving intelligent and unmanned disinfection and cleaning, minimizing human contact and effectively reducing the risk of contact infection. Customizable path planning maximizes disinfection coverage.

With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper T350A is widely used in 3D cellophane wrapping of single or multiple cuboid products in cosmetic, health care, food and other industries. Stable operation and firm sealing make the products nicely presented, tamper-evident,and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value.

DPT420W+ZHJ300 Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT420W-ZHJ300 Tray module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     （customizable≤240mm） Scope of application vials, ampoule, others on request Packaging materials PVC/PVDC Max. width: 420mm  thickness:0.15~0.50mm Max. forming depth 25mm (customizable≤45mm) Heating power PVC pre-heating plates: 2x5、Lamination heating:4KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder), oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheel equipped with digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of blisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of, blisters, drug bottles, ointments and other similar products. 8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

With easily visible open balcony design and modular concept, DPT-350/420 is applicable to tray making and loading for vials, ampoules, injectables (powder), oral liquids or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. No heat sealing. Shockproof vase-shaped pockets for injectables, ampoules and oral liquids.Servo drive and smart integration, high-speed performance.

DPT350L+ZHJ200 Vials Blister Packing and Cartoning Production Line Parameters Model DPT350L+ZHJ200 Blister module Punching speed 10-35 cuts/min Max. forming area 345×180mm Stroke range standard ≤60-150mm  (customizable ≤180mm) Scope of application vials, oral liquid, others on request Packaging materials PVC/PVDC Max. width: 350mm       thickness: 0.15~0.50mm Max. forming depth 25mm ( customizable≤45mm) Heating power PVC pre-heating plate: 2x1.5KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×75mm Min:70×33×17mm Leaflet size (LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 80-150 cartons/min (depending on blister size) Main motor power 2.2KW Air pump Compressed air 0.5~0.8MPa Flow >0.2m2 Power supply 380V  50Hz Motor frequency 0-50Hz Dimensions(LxWxH) 10000X1170X2100 Weight 5600kg Total power 13.6kw Total air consumption 500L/min Certificates ISO9001:2015; ISO 45001:2018; CE Warranty 1 year Description DPT350L+ZHJ200 is a newly developed product designed for stand-up packaging of vials, oral liquid and daily chemical products. This machine has fast production speed, stable performance and high yield. It has advanced functions and intuitive operation. The whole production adopts PLC used for the packaging of vials.The packed products can not only provide feasts for eyes, increase added value, but also save packaging costs. Features Blister Module 1. Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2. Workstation adjustment by handwheel equipped with digital position display. 3. Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4. Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5. Packing material winding through air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6. Force feeding by pick-and-place robot arm ensures accurate placement of blisters without damage. Cartoner Module 1. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of blisters, drug bottles, ointments and other similar products. 2. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 3. ZHJ200 adopts PLC, photoelectric detection, and HMI. 4. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 5. With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching,T350B is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value.
