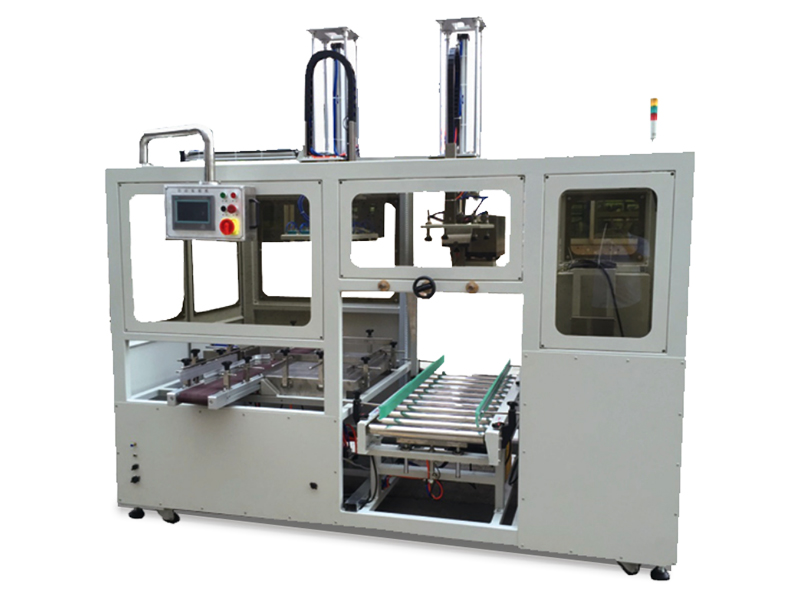

Cross-type Case Loader/Loading Machine ZXJ-600XY

Side-pushing type Case Loader ZXJ-600CT is equipped with imported electrical components and Siemens PLC + HMI, characteristic of intuitive operation and stable performance, mainly used in food, medicine, cosmetics and other industries.

Tailored for bottle-packed and barrel-packed products, with novel design, compact structure, and imported key components. The machine automatically groups, collates, aligns and packs products, such as PET bottles, plastic bottles, glass bottles, tins and cans, according to the packing requirements, applicable to case packing in beer, beverage, food, chemical industries, particularly used in a production line. Rugged mobility, computer program control, intuitive operation, and stable process. Optional drive system at customer's discretion: electric drive, pneumatic drive or servo drive.

All-in-one Case Erecting/Loading/Sealing Machine KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erecting machine driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

With easily visible open balcony design and modular concept, DPT-350/420 is applicable to tray making and loading for vials, ampoules, injectables (powder), oral liquids or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. No heat sealing. Shockproof vase-shaped pockets for injectables, ampoules and oral liquids.Servo drive and smart integration, high-speed performance.

With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching,T350B is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value.

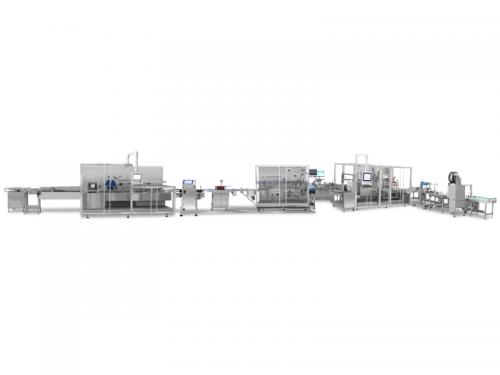

DPT420L+ZHJ300 Powder Injection Blister Packing and Cartoning Production Line Parameters Model DPT420l-ZHJ300 Blister module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     (customizable≤240mm) Scope of application vials, oral liquid, others on request Packaging machine PVC/PVDC Max.width:420mmthickness:0.15~0.50mm Max. forming depth 25mm(customizable≤45mm) Heating power PVC pre-heating plates 2x5KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner power Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min (depending on blister size) Motor power 2.2KW Air pump Compressed air（MPa) 0.5~0.8MPa Flow >0.2m2 Power supply 380V  50Hz Motor frequency 0-50Hz Dimensions(LxWxH) 13300X1170X2100 Weight 6800kg Total power 19.6kw Max. air consumption 500L/min Certificates ISO9001:2000;CE认证 Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420L+ZHJ300 is applicable to tray making and loading for vials, powder injection, and oral liquid. Shockproof vase-shaped pockets are suitable for injectables and oral liquids. Driven by servo, it has realized intelligent integration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement ofblisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

DPT420W+ZHJ300 Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT420W-ZHJ300 Tray module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     （customizable≤240mm） Scope of application vials, ampoule, others on request Packaging materials PVC/PVDC Max. width: 420mm  thickness:0.15~0.50mm Max. forming depth 25mm (customizable≤45mm) Heating power PVC pre-heating plates: 2x5、Lamination heating:4KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder), oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheel equipped with digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of blisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of, blisters, drug bottles, ointments and other similar products. 8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

Plate-type blister packing machine seals and packages blisters by Alu/PVC (PTP/PVC) or Alu/Alu (PTP/PTP) for tablets, capsules or ampoules, food, health products, electronic components and other similar products. Positive pressure forming and platen heat sealing produces flat and neat blisters with full and smooth pockets, which is well accepted in various industries.
