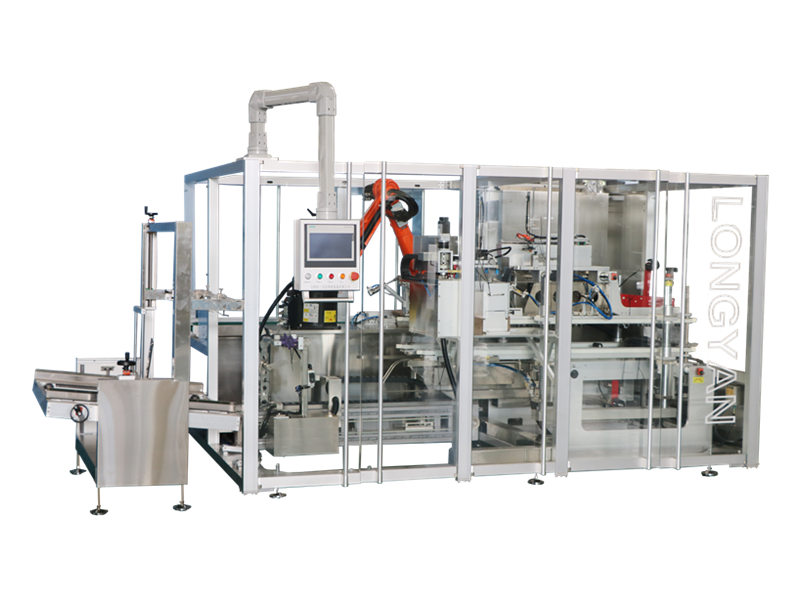

All-in-One Case Erecting/ Loading/ Sealing Machine KZF-550R1 (loading by Kuka robot)

All-in-one Case Erector Loader Sealer KZF-550R3 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All-in-one Case Erector Loader Sealer KZF-550R2 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

All in One Case Erector Loader Sealer KZF-550A incorporates advanced technologies both at home and abroad. Integrating automatic stacker, case erector, loader and sealer in one machine, comprising pick & place mechanisms for interlayer cardboards as well as QC passes, a PLC+14 HMI operating system facilitates case erecting and loading by servo module. Applicable to automatic packing of various sizes of products. The machine can be used solo or integrated with the proceeding packing machine to complete end-of-line packaging.

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.

DPT350W+ZHJ120 Oral Liquid Blister Packing and Cartoning Machine Parameters Model DPT350W+ZHJ120 Blister module Punching speed 10--30 cuts/min Packaging materials PVC/PVDC Max. width: 350mmthickness:0.15~0.50mm Scope of application vials, ampoule, oral liquid, others on request Main functions heating-forming-dectecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm( customizable≤45mm) Max. forming area 345x150mm Stroke range Standard≤150mm (customizable≤250mm) Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Cartoner module Output 120 cartons/min Carton size Max:180×90×50mm Min:55×30×15mm Main motor power 1.5KW Total power 2.0KW Compressed air 0.6-0.9Mpa Weight 1800KG Dimensions(LxWxH) 3500×1450×1800mm Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ120 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7.Intermittent Cartoner ZHJ120 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ120 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

K600B+KZF550R3 Flim Bundling and Case Packing Production Line Parameters Model K600B+KZF550R1 Bundler module Bundle size(LxWxH) Max:250x180x120mm Min:100x80x60mm Packaging materials PE Width:45-80mm Thickness:60-80mm Output 25-35 bundles/min Power supply 220V/50Hz Power 5KW Compressed air 0.6-0.8Mpa Dimensions 2900x1200x1830mm Weight 1200Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description Easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation andeasy format changeover. The machine is mainly usedin wrapping andbundling of carton-packed products in food and pharmaceutical industries.  All-in-one Case Erector Loader Sealer KZF-550R1 incorporates advanced technologies both home and abroad. Automatic stacker, case erector driven by servo, loader by Kuka robot, and sealer are integrated in one machine, with a PLC+HMI operating system.Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line. The machine stacks and collates the cardboard blanks (KNF) according to the required numbers of products to be packed. The Kuka robot arm will pick and place the product into the case after stacking andcase will be sealed after loading. The machine can be equipped with conveyor roller as per customer’s requirement to be integrated with labeling machine and strapping machine. Features Bundler module 1.State-of-the-art design of structure andelectronic control system. Mainservo drive insulated from operation area. GMP compliant. 2. Advancedheat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double filmreelingstructure savepacking materials and reduce cost. 3.Multi-lane pre-stacking mechanismsubstantially increases the speed of cartongrouping and collating wherebythe feeding speedcan reach 200-400 cartons/minutes in theproceeding stage. Bundling speed is not less than 40 bundles/minute. 4.Bundling strength is adjustable. Changing products andadjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes. All-in-one case packer module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Machine motion controlled by cam drive coupled with linkage mechanism ensures fast, precise and stable mechanical movements. One of the most stable high-speed case erectors in China. With compact design, intuitive operation, and easy adjustment. Pre-warning alert for replenishing cardboard blanks (KNF) without downtime. With alarm and machine stop in case of malfunction, cases won't be damaged.
