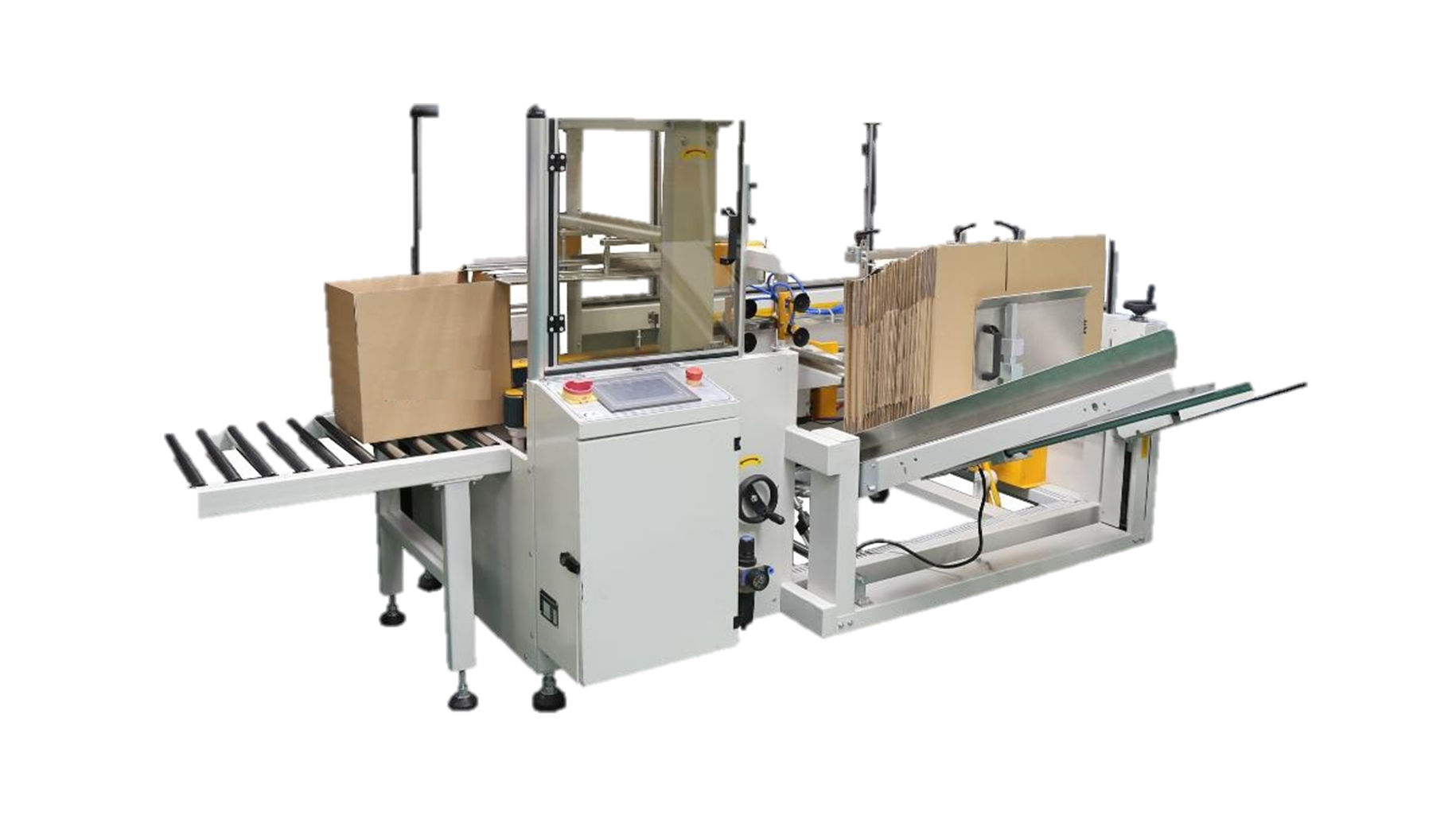

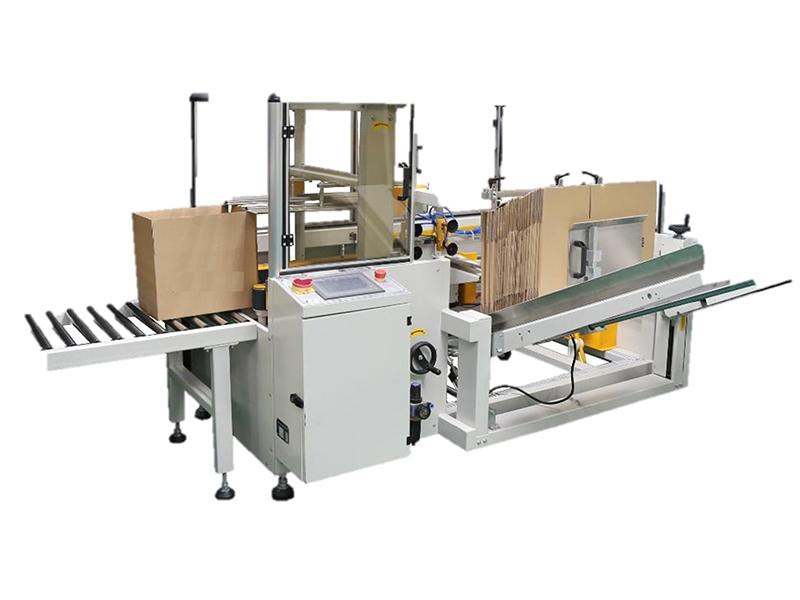

Case Erector KXJ-01A

Machine motion controlled by cam drive coupled with linkage mechanism ensures fast, precise and stable mechanical movements. One of the most stable high-speed case erectors in China. With compact design, intuitive operation, and easy adjustment. Pre-warning alert for replenishing cardboard blanks (KNF) without downtime. With alarm and machine stop in case of malfunction, cases won't be damaged.

Cross-type Case Loader ZXJ-600XY packs products vertically with vertical loading into cases, which is applicable to pharmaceutical, food and beverage, beer, liquor, oil and grease, daily chemical, bottled food and other industries.

This easily visible open balcony design, multi-lane pre-stacking mechanism, and PLC + HMI with imported electronic components and servo drive enable high-speed bundling, stable operation and easy format changeover. The machine is mainly used in wrapping and bundling of carton-packed products in food and Cosmetic industries.

All-in-one Case Erector Loader Sealer KZF-550R3 incorporates advanced technologies both home and abroad. Automatic stacking, case erector driven by servo, loader by four-axis Yamaha robot, and sealer are integrated in one machine, with a PLC+HMI operating system. Applicable to automatically packing various sizes of products, the machine can be used solo or integrated with the proceeding packing machine to form a packaging line.

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.

TPZX-100L Lotion Cellophane Wrapping and Case Packing Production Line Parameters Model TPZX-100L Cartoner module Carton size(LxWxH) (80-200)x(30-120)x(25-100)mm Carton quality 300-350g/m2 white cardboard Leaflet quality 60-65g/m2 Output 40-80 cartons/min Total power 11KW Dimensions(LxWxH) 2920x1140x1880mm 5580x1440x1880mm(including lining mechanism) Weight 1500Kg Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, Cellophane Wrapper is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Integrated with all-in-one case packer, it can achieve intelligent, digital, and net-worked production. Features Lotion cartoner module 1.With PLC+HMI, it is equipped with high end servo motors, featuring easy format change,fast speed, stable performance, and accurate position. It is intuitive to operate even by an inexperienced operator. 2.The cartoning speed and accumulated output will be shown on touch screen.Functions can be chosen manually and automatically. 3. Equipped with an automatic detection system, ZHJ-100B automatically detects and locates the shutdown for failures such as lack of materials, materials not in place, and inability to open the carton. 4. Fault alarm and corresponding maintenance methods will be shown on touch screen. Cellophane wrapper module This machine has incorporated advanced technologies abroad. With compact structure, it is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products. All-in-one case packer module 1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2. The stacking system can be adjusted according to the size of the case and stacking pattern. 3.Not less than 10 placements per minute for quick case loading. 4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process. 5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Single and Multiple Bundles Cellophane Wrapping and Case Packing Production Line Parameters Model  TPZX-100L Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper is widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and  firm sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Features Cellophane wrapping module The machine has incorporated advanced technologies both home and abroad. With compact structure, T350A is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products.  All-in-one case packing module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Automatic Sealer and Shrink Wrap Machine S701+S4525L consists of an L-bar sealer and a heat shrink tunnel, extensively used in the mass production of packaging. A fully-automatic process of film feeding, punching, wrapping, sealing, cutting and shrinking, except manual adjustment of film guiding system and feeding platform for products of different widths and heights.
