Single and Multiple Bundles Cellophane Wrapping and Case Packing Production Line

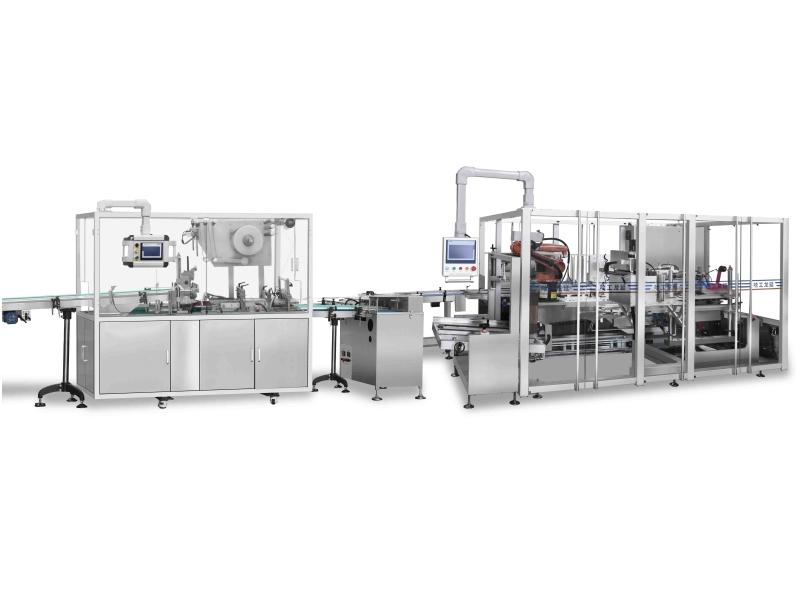

TPZX-100L Lotion Cellophane Wrapping and Case Packing Production Line Parameters Model TPZX-100L Cartoner module Carton size(LxWxH) (80-200)x(30-120)x(25-100)mm Carton quality 300-350g/m2 white cardboard Leaflet quality 60-65g/m2 Output 40-80 cartons/min Total power 11KW Dimensions(LxWxH) 2920x1140x1880mm 5580x1440x1880mm(including lining mechanism) Weight 1500Kg Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, Cellophane Wrapper is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Integrated with all-in-one case packer, it can achieve intelligent, digital, and net-worked production. Features Lotion cartoner module 1.With PLC+HMI, it is equipped with high end servo motors, featuring easy format change,fast speed, stable performance, and accurate position. It is intuitive to operate even by an inexperienced operator. 2.The cartoning speed and accumulated output will be shown on touch screen.Functions can be chosen manually and automatically. 3. Equipped with an automatic detection system, ZHJ-100B automatically detects and locates the shutdown for failures such as lack of materials, materials not in place, and inability to open the carton. 4. Fault alarm and corresponding maintenance methods will be shown on touch screen. Cellophane wrapper module This machine has incorporated advanced technologies abroad. With compact structure, it is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products. All-in-one case packer module 1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2. The stacking system can be adjusted according to the size of the case and stacking pattern. 3.Not less than 10 placements per minute for quick case loading. 4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process. 5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Cross-type Case Loader ZXJ-600XY packs products vertically with vertical loading into cases, which is applicable to pharmaceutical, food and beverage, beer, liquor, oil and grease, daily chemical, bottled food and other industries.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.

The Laser SLAM Forklift is the modified version of the original manual-only forklift. By adding various sensors, it can automatically walk, avoid obstacles, and lift goods. In addition, it is equipped with safety contact edges to ensure the overall safety and stability.

DPT350W+ZHJ200 Prefilled Syringes Blister Packing and Cartoning Production Line Parameters Model DPT350W+ZHJ200 Tray module Punching speed 10--30 cuts/min (depending on blister size) Packaging materials PVC/PVDC Max. width: 350mm  thickness:0.15~0.50mm Scope of application vials, ampoule, oral liquid, others on request Main functions heating-forming-detecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm (customizable≤45mm) Max. forming area 345x150mm Stroke range standard≤150mm (customizble≤250mm) Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×20×16mm Leaflet size(LxW) (100-180)x(100-280)mm Leaflet quality 60-65g/m2 Output 60-200 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ200 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ200 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

Top-ranking by international standard. Easily visible open balcony design. In-built double-lane carton stacking mechanism. PLC + HMI with imported electronic components. Mainly pneumatic drive allows high-speed bundling and stable operation, easy format changeover with intuitive operation.The machine is mainly used in wrapping and bundling of carton-packed products in food and cosmetic  industries.

DPT420W+ZHJ300 Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT420W-ZHJ300 Tray module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     （customizable≤240mm） Scope of application vials, ampoule, others on request Packaging materials PVC/PVDC Max. width: 420mm  thickness:0.15~0.50mm Max. forming depth 25mm (customizable≤45mm) Heating power PVC pre-heating plates: 2x5、Lamination heating:4KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder), oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheel equipped with digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of blisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of, blisters, drug bottles, ointments and other similar products. 8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

TPZX-100L Lotion Cellophane Wrapping and Case Packing Production Line Parameters Model TPZX-100L Cartoner module Carton size(LxWxH) (80-200)x(30-120)x(25-100)mm Carton quality 300-350g/m2 white cardboard Leaflet quality 60-65g/m2 Output 40-80 cartons/min Total power 11KW Dimensions(LxWxH) 2920x1140x1880mm 5580x1440x1880mm(including lining mechanism) Weight 1500Kg Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, Cellophane Wrapper is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Integrated with all-in-one case packer, it can achieve intelligent, digital, and net-worked production. Features Lotion cartoner module 1.With PLC+HMI, it is equipped with high end servo motors, featuring easy format change,fast speed, stable performance, and accurate position. It is intuitive to operate even by an inexperienced operator. 2.The cartoning speed and accumulated output will be shown on touch screen.Functions can be chosen manually and automatically. 3. Equipped with an automatic detection system, ZHJ-100B automatically detects and locates the shutdown for failures such as lack of materials, materials not in place, and inability to open the carton. 4. Fault alarm and corresponding maintenance methods will be shown on touch screen. Cellophane wrapper module This machine has incorporated advanced technologies abroad. With compact structure, it is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products. All-in-one case packer module 1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2. The stacking system can be adjusted according to the size of the case and stacking pattern. 3.Not less than 10 placements per minute for quick case loading. 4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process. 5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.
