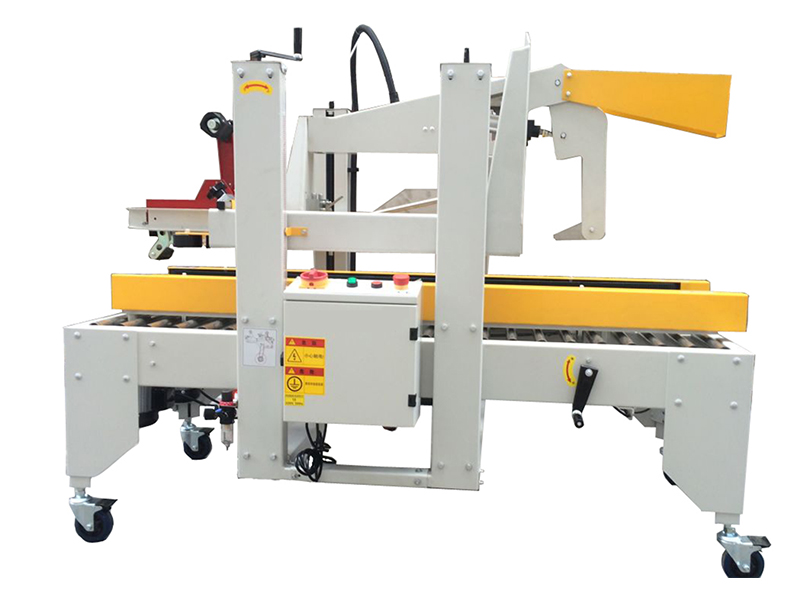

Double-pillar Case Sealer FXJ-02A

Case Sealer FXJ-01A is widely used inindustriessuch as food, beverage, tobacco, chemical, automobile, cable and electronics.

DPT420W+ZHJ300 Ampoule Blister Packing and Cartoning Production Line Parameters Model DPT420W-ZHJ300 Tray module Punching speed 10--35 cuts/min Max. forming area 415×240mm Stroke range standard≤60-150mm     （customizable≤240mm） Scope of application vials, ampoule, others on request Packaging materials PVC/PVDC Max. width: 420mm  thickness:0.15~0.50mm Max. forming depth 25mm (customizable≤45mm) Heating power PVC pre-heating plates: 2x5、Lamination heating:4KW Power supply 380V  50Hz Main motor power 3.0KW Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×33×17mm Leaflet size(LxW) （100-180）x（100-280）mm Leaflet quality 60-65g/m2 Output 150-300 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design and modular concept, DPT420W+ZHJ300 is applicable to tray making and loading for vials, ampoule, injectables (powder), oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine are easy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheel equipped with digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motor yields stable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of blisterswithout damage. Cartoner module 7. Continuous Cartoner ZHJ300 is a high-tech photoelectric, pneumatic and mechanical machine, applicable to a wide range of, blisters, drug bottles, ointments and other similar products. 8. It has fully automatic process of products conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ300 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

Equipped with 21.5-inch dual-screen multimedia, Sweeping and Advertising Robot SW12 integrates low-speed unmanned driving technology with cleaning concept and multimedia, providing professional cleaning for commercial users such as transportation hubs, shopping malls, supermarkets, exhibition centers and other premises. The robot attracts audience' attention by advertisement while cleaning.

The six-axis all-purpose robot of HR series has compact design and is flexible and efficient in operation.

This completely automatic high speed labeling machine TBJ-200A uses touch screen and an advanced PLC control system. It is excellent for flat labeling, side labeling and corner labeling of cartons, cases and other cuboid products.

With modular design, DPTL-350/420/600 is applicable to tray making, loading, lamination and packing into cartons for ampoules, injectables (powder), oral liquids or trays of bigger sizes and special shapes for medical appliances, electronics (cells) and cosmetics, all modules integrated in one line with high speed.

DPT350W+ZHJ200 Prefilled Syringes Blister Packing and Cartoning Production Line Parameters Model DPT350W+ZHJ200 Tray module Punching speed 10--30 cuts/min (depending on blister size) Packaging materials PVC/PVDC Max. width: 350mm  thickness:0.15~0.50mm Scope of application vials, ampoule, oral liquid, others on request Main functions heating-forming-detecting-tracting-laminating-punching-feeding-transmitting Max. forming depth 25mm (customizable≤45mm) Max. forming area 345x150mm Stroke range standard≤150mm (customizble≤250mm) Power supply 380V  50Hz Total power 9kw Compressed air 0.5~0.7MPa Cooling water consumption tap water circular cooling/chiller Noise 40-70dB Dimensions(LxWxH) 4800X1170X2100 Weight 3000kg Cartoner module Carton size(LxWxH) Max:210×108×65mm Min:70×20×16mm Leaflet size(LxW) (100-180)x(100-280)mm Leaflet quality 60-65g/m2 Output 60-200 cartons/min Main motor power 2.2KW Motor frequency 0-50Hz Certificates ISO9001:2000;CE Warranty 1 year Description With easily visible open balcony design andmodular concept, DPT350W+ZHJ200 is applicable to tray making and loading for vials, ampoule, injectables (powder),oral liquid or bigger size and special shape of trays for medical appliances, electronics (cells) and cosmetics. Shockproof vase-shaped pockets are suitablefor injectables, ampoule and oral liquids. Driven by servo, it has realized intelligentintegration, high-speed performance. Features Blister module 1.Main drive and main motor installed at the rear of the machine areeasy to maintain. Transmission using synchro-belt reduces noise and oil pollution. 2.Workstation adjustment by handwheelequippedwith digital position display. 3.Segmental pre-heating with elongated silicone heating plate in heating station results in better forming effect. The upper and lower heating plates can be separated and displaced after machine stop to avoid damaging the plastic nature of the packing material. 4.Traction mechanism independently controlled by servo motoryieldsstable performance and accurate synchronization. The stroke length can be set directly through the PLC control panel according to the user's blister size. 5.Packing material windingthrough air expansion bearing reel with PVC splicing and joining platform facilitates quicker changeover of packing materials. 6.Force feeding by pick-and-place robot arm ensures accurate placement of the infeed without damaging blisters. Cartoner module 7. Continuous Cartoner ZHJ200 is a high-tech photoelectric, pneumatic and mechanical machine, applicable toa wide range of, blisters, drug bottles,ointments and other similar products. 8. It has fully automatic process ofproducts conveyance and detection, leaflet folding (1-4 times) and transmission, leaflet detection, carton pick-up, erecting and transmission, products into cartons, batch mark embossing, carton sealing (tuck-in or hot melt adhesive). It’s also the right choice for integrated production and mass production. 9. ZHJ200 adopts PLC, photoelectric detection, and HMI. 10. The touch screen has the code and address of each sensor actuator, which can query the consequences caused by the damage of the sensor and the actuator. 11.With overload monitoring system for the whole machine, conveyor chain, and pusher, the machine will stop automatically to minimize the damage and the overloading part will be displayed on the touch screen.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.
