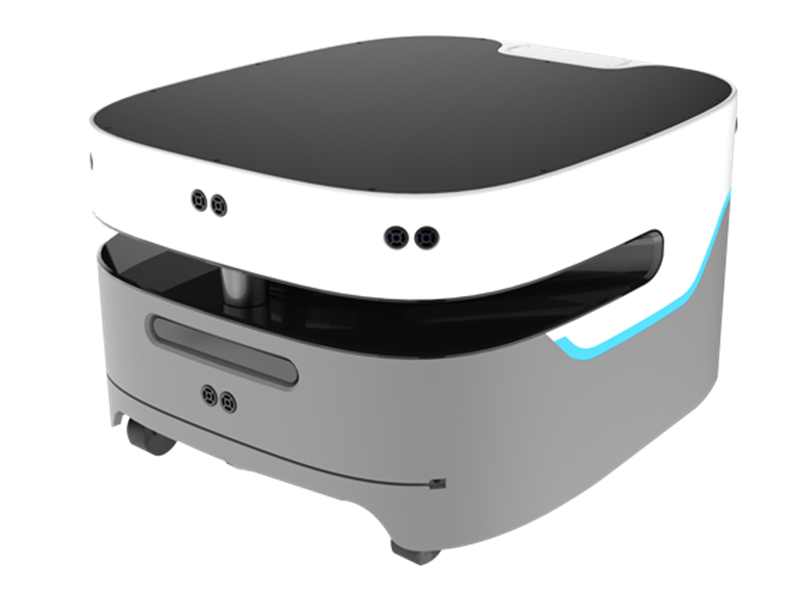

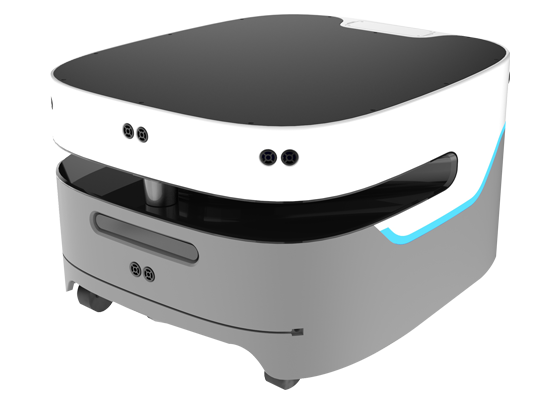

Light Load Indoor Laser Navigation AGV

HRG provides customized services for clients in medical service, robotics, warehousing and logistics industry and light industrial sector. Options include robot navigation solutions, robot chassis design, and mobile chassis for outdoor robots.

The heavy-load AGV can move on the designated route and accurately pull over to the planned station to pick-up and deliver goods under computer monitoring. The product is powered by a battery pack that keeps track of real-time power loss and automatically docks for recharge. It can satisfy the need for all-year long continuous production.

The two-way carrying AGV series is equipped with magnetic navigation technology, with zero turning radius, large carrying and flexible motion capability as well as optimized laser safety protection and strong adaptability to various scenarios. It is applicable in a wide variety of production areas, such as automobile, electronics, home appliances, warehousing, medicine and food.

Electric Power Steering (EPS) AGV consists of an electronic forklift (Linde L14), KOB control system, navigation control system, wireless equipment and dispatch and control system. Its navigation control system is composed of a navigation positioning controller, positioning radar, display screen, safety electrical equipment and peripheral electrical equipment. Wireless AP is responsible for dispatch control system’s WIFI communication. The dispatch control system is responsible for route planning, task scheduling and status display. The EPS AGV is suitable for a wide range of application scenarios and can replace manual forklift handling.

The two-way knapsack AGV utilizes the latest laser SLAM navigation technology and magnetic stripe-assisted positioning technology, which has high positioning precision and is easy to build maps and change stations.

The Laser SLAM Forklift is the modified version of the original manual-only forklift. By adding various sensors, it can automatically walk, avoid obstacles, and lift goods. In addition, it is equipped with safety contact edges to ensure the overall safety and stability.

TPZX-100L Lotion Cellophane Wrapping and Case Packing Production Line Parameters Model TPZX-100L Cartoner module Carton size(LxWxH) (80-200)x(30-120)x(25-100)mm Carton quality 300-350g/m2 white cardboard Leaflet quality 60-65g/m2 Output 40-80 cartons/min Total power 11KW Dimensions(LxWxH) 2920x1140x1880mm 5580x1440x1880mm(including lining mechanism) Weight 1500Kg Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, Cellophane Wrapper is a bottom-sealing cellophane wrapper, widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and firm smooth sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Integrated with all-in-one case packer, it can achieve intelligent, digital, and net-worked production. Features Lotion cartoner module 1.With PLC+HMI, it is equipped with high end servo motors, featuring easy format change,fast speed, stable performance, and accurate position. It is intuitive to operate even by an inexperienced operator. 2.The cartoning speed and accumulated output will be shown on touch screen.Functions can be chosen manually and automatically. 3. Equipped with an automatic detection system, ZHJ-100B automatically detects and locates the shutdown for failures such as lack of materials, materials not in place, and inability to open the carton. 4. Fault alarm and corresponding maintenance methods will be shown on touch screen. Cellophane wrapper module This machine has incorporated advanced technologies abroad. With compact structure, it is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products. All-in-one case packer module 1. PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2. The stacking system can be adjusted according to the size of the case and stacking pattern. 3.Not less than 10 placements per minute for quick case loading. 4.Case erector driven by servo and case loader by four-axis Yamaha robot ensure stable and reliable process. 5. Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

PLC control, time accuracy is limited within 1 millisecond. Each strapping takes only 2.2 seconds. Lubricant-free, rugged structure,and long durability. Strapping strength is adjustable to cope with broad variety of bundles. Straps placed outside makes changeover easy. The machine can run 24 hours continuously, used solo or integrated with a conveying system to achieve unmanned strapping.
