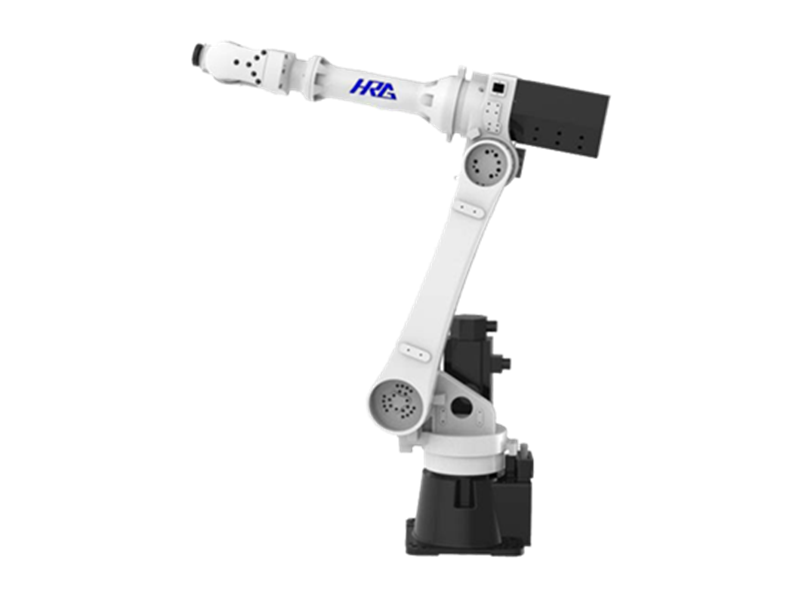

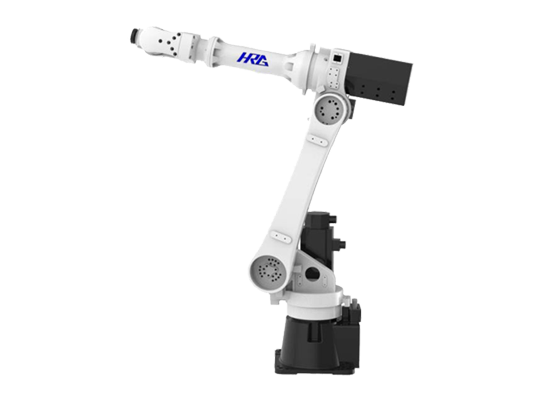

HR16 16kg Six-axis Industrial Robot

It is used for easily achieveing automated production line and completing tasks such as handling and stacking.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.

It is used for production lines integration in a wide variety of industries and can deliver moving and stacking tasks efficiently.

The six-axis all-purpose robot of HR series has compact design and is flexible and efficient in operation.

This Automatic case erector adopts the international advanced technology，and use imported parts, electrical components. This boxes packing machine  is  widely  used  in food, medical, beverage, tobacco, automotive, cable, electronics and other domestic industries.

This Inline Checkweigher WDC-300 has a touch screen, allowing for intuitive operation. This carton box weighing machine is made entirely of stainless steel, frequently used to check the weight of bags and packs.

Bottle Cartoning, Bundling and Case Packing Production Line Parameters Model PZX-300L Cartoner module Carton size(LxWxH) Max:210x108x65mm Min:70x33x17mm Leaflet size(LxW) (100-180)x(100-280)mm Leaflet quality 60-60g/m2 Output 150-300 cartons/min Power 2.2KW Banding module Bundle size(LxWxH) Max:250x180x120mm Min:100x80x60mm Packaging material PE film Width:45-80mm Thickness:60-80um Output 25-30 bundles/min Power Supply 220V/50Hz Power 5KW Compressed Air 0.6-0.8Mpa Dimensions 2900x1200x1830mm Weight 1200KG Case packer Case size(LxWxH) (300-550)x(200-400)x(200-350)mm (customizable) Loading speed Robot arm≥10 placements/min Power supply 380V 50Hz Power 8Kw Compressed Air 0.6Mpa Dimensions 4200x2300x1860 Weight 1200Kg Air pump Compressed Air 0.5-0.8Mpa Air Flow ＞0.2m2 Power supply 220V 50Hz; 380v 50Hz Motor Frequency Conversion Capacity 0-50Hz Dimensions(LxWxH) 19800X1170X2100 Weight 8900Kg Total Power 19.8Kw Certificates ISO9001:2000; CE Warranty 1 year Features Cartoner module 1. Easily visible open balcony design, continuous back pushing by 21 groups of pushing shafts, aluminum, stainless steel and tempered glass make the appearance chic and elegant. Intuitive operation and easy maintenance. 2. SEW main motor and synchro-belt main drive ensure high transmission efficiency, low noise, and high level of durability. 3. Wires and pneumatic tubes concealed in stainless steel slots improves the aesthetics inside the machine. Insulated operation area from transmission area avoids cross interventions. Rotation of the control panel from 0 to 100 degrees eases maintenance and cleaning. 4. The width of the carton conveyor belt is adjustable according to the material specifications at the front of the line. The number of layers can be set based on the cartoning specifications. The loading speed is synchronized with the speed of the coming material. 5. Adjusting the width of the material, the width of the carton and the position of the pushing shaft outside the machine mechanism allows wide space and easy access. 6. The carton magazine can be lifted for more convenient commissioning.  7. Picking up cartons by multiple suction heads ensures automatic carton forming and loading. The magazine can store 500-1000 cartons, which are transported by conveyor belt controlled by replenishing pneumatic cylinder. 8. Various checking devices are in place, such as rejecting failed material feeding, missed leaflet, or failed tuck flap locking. Bundler module 1. State-of-the-art design of structure and electronic control system. Main servo drive insulated from operation area. GMP compliant. 2. Advanced heat-sealing mechanism, perfect non-overlap PE film hot melt sealing, and double film reeling structure save packing materials and reduce cost. 3. Multi-lane pre-stacking mechanism substantially increases the speed of carton grouping and collating whereby the feeding speed can reach 200-400 cartons/minutes in the proceeding stage. Bundling speed is not less than 40 bundles/minute. 4. Bundling strength is adjustable. Changing products and adjusting machine is easy. Format changeover and machine adjustment take less than 10 minutes. Case Packer module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing.  2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.

Single and Multiple Bundles Cellophane Wrapping and Case Packing Production Line Parameters Model  TPZX-100L Cellophane Wrapping module Bundle size(LxWxH) (50-220)x(30-130)x(20-60)mm Packaging materials BOPP/PVC Thickness:0.018-0.030mm Output 40-80 cartons/min Power supply 220V/50Hz 380V/50Hz Power 3KW Compressed air 0.6-0.8Mpa Dimensions 3980x900x1590mm Weight 800Kg All-in-one Case Packer module Case size(LxWxH) (300-550)x(200-400)x(200-350) customizable Robot arm packing speed 10 placements/min (related to palletizing layers) Power supply 380V 50Hz Power 8Kw Compressed air 0.6Mpa Dimensions 4400x2300x1860mm(for reference only) Weight 1200Kg Air pump Compressed air 0.5-0.8Mpa Flow ＞0.2m2 Motor frequency 0-50Hz Max. air consumption 500L/min Certificates ISO 9001: 2000; CE Warranty 1 year Description With automatic feeding, wrapping, cellophane folding, heat sealing, counting and tear tape attaching, the Cellophane Overwrapper is widely used in 3D cellophane wrapping of single or multiple cuboid products in pharmaceutical, cosmetic, health care, food and other industries. Stable operation and  firm sealing make the products nicely presented, tamper-evident, and moisture-and-dust-proof. The machine will immediately upgrade the wrapped product to a higher class, increasing added value. Features Cellophane wrapping module The machine has incorporated advanced technologies both home and abroad. With compact structure, T350A is easy to operate and service, suitable for overwrapping products of various specifications by changing only a few parts. It is applicable to large cuboid products, multiple overlapped products and the products requiring photoelectric tracking, such as packets of cigarettes, boxes of tea, boxes of chewing gum, medicines, cosmetics, and health products.  All-in-one case packing module 1.PLC + HMI controls automatic counting, stacking, case erecting, loading and sealing. 2.The stacking system can be adjusted according to the size of the case and stacking pattern. 3. Not less than 10 placements per minute for quick case loading. 4.Case erecting and KDF placing are driven by servo and six-axis Kuka robot set for case loading ensures stable and reliable loading. 5.Highly compatible. Hand-wheel marked with scales for adjustment and fine-tuning. 6.Warnings are in place for machine fault, missed product, missed case or machine jam.
